Headphone Jack Metal-Contact Audio Jack – GSC-AUD-0062
Audio3 Pin
GSC-AUD-0062 is an audio 3-contact connector, 3.6mm 3P metal-head (board-mount type) audio jack. GSCONN part GSC-AUD-0062.
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×17×7×8.4mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- 3.6mm 3P metal‑head (board‑mount type) audio jack
- Dimensions: ￠3.6×17×7×8.4mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

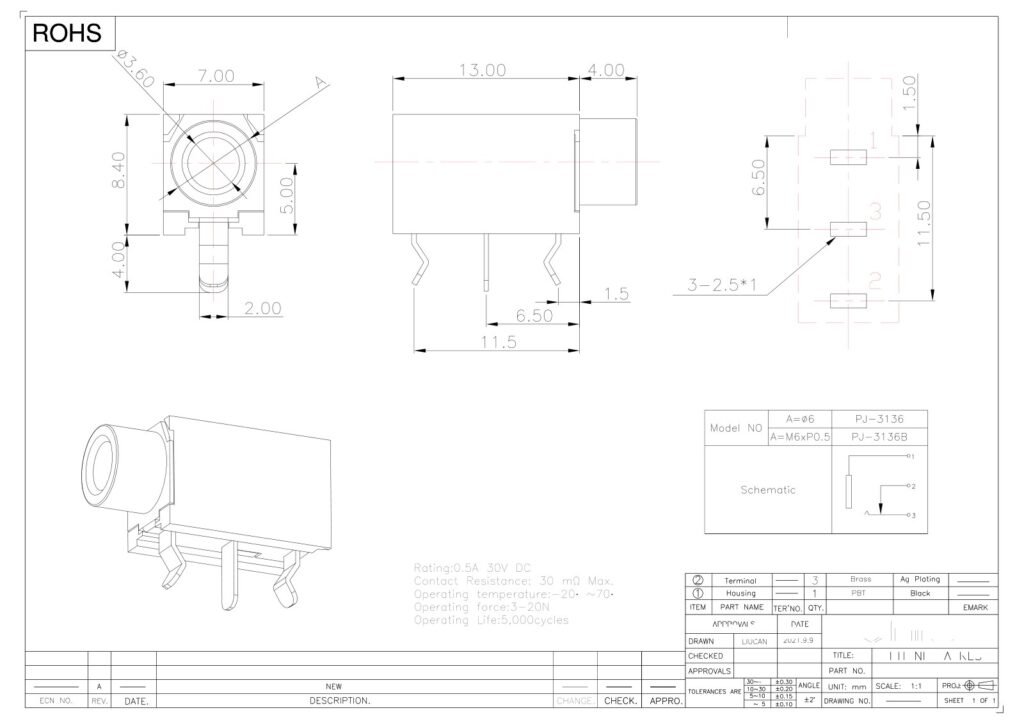

Drawing & Dimensions
GSC-AUD-0062 is an audio 3-contact connector, 3.6mm 3P metal-head (board-mount type) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×17×7×8.4mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
