Headphone Jack Metal-Contact Audio Jack – GSC-AUD-0079
Audio3 Pin
GSC-AUD-0079 is an audio 3-contact connector, ￠2.6mm 3P metal-head (board-mount type) audio jack. GSCONN part GSC-AUD-0079.
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠2.6×12.8×7×7.5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠2.6mm 3P metal‑head (board‑mount type) audio jack
- Dimensions: ￠2.6×12.8×7×7.5mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

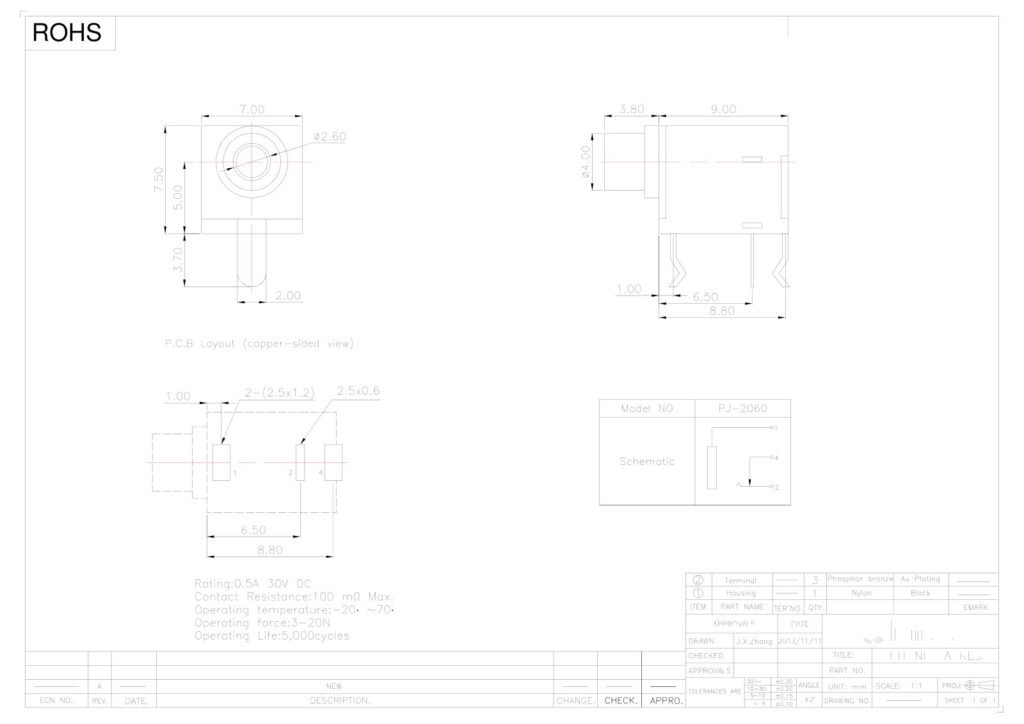

Drawing & Dimensions
GSC-AUD-0079 is an audio 3-contact connector, ￠2.6mm 3P metal-head (board-mount type) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠2.6×12.8×7×7.5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
