Headphone Jack Plug-in Audio Jack – GSC-AUD-0076
Audio3 PinThrough-Hole
GSC-AUD-0076 is an audio 3-contact connector, ￠2.6mm 3P audio jack with positioning posts (board-mounted plug-in type). GSCONN part GSC-AUD-0076.
Through-HolePCB solder termination
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠2.6×12×5×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠2.6mm 3P audio jack with positioning posts (board-mounted plug-in type)
- Dimensions: ￠2.6×12×5×5mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

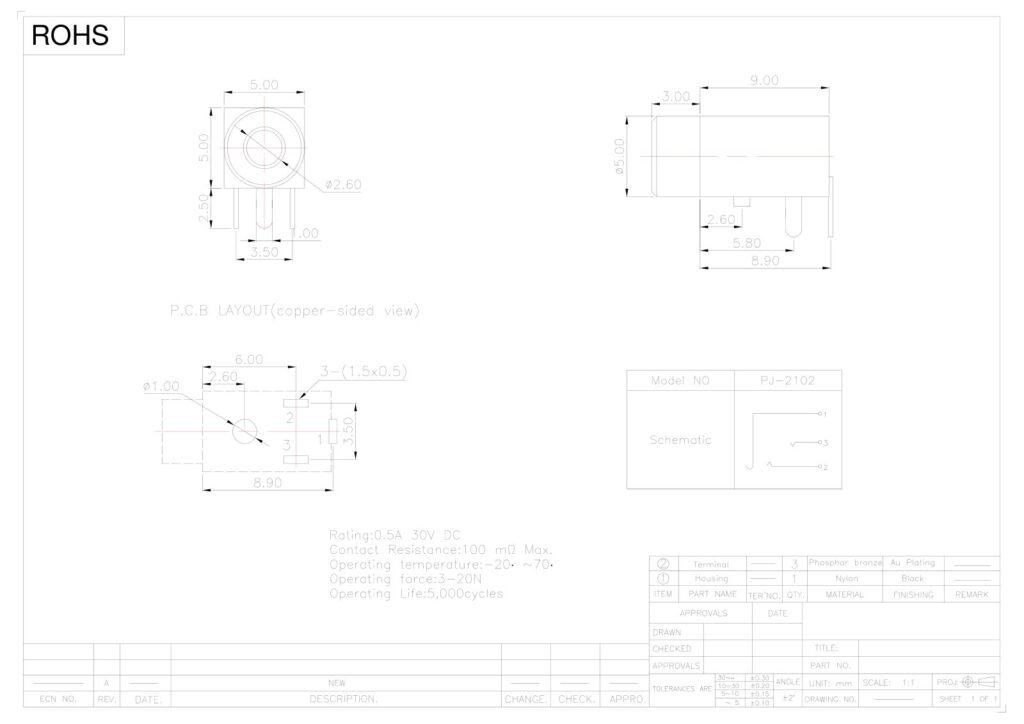

Drawing & Dimensions
GSC-AUD-0076 is an audio 3-contact connector, ￠2.6mm 3P audio jack with positioning posts (board-mounted plug-in type).
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠2.6×12×5×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
