Headphone Jack Waterproof Audio Jack – GSC-AUD-0008
Audio5 PinThrough-HoleWaterproof
GSC-AUD-0008 is an audio connector, 3.6 mm, 5-pin waterproof audio jack (board-mount plug-in type). GSCONN part GSC-AUD-0008.
WaterproofRated waterproof construction
Through-HolePCB solder termination
5,000 CyclesRated mating life
Technical Specifications
| Series | AUDIO JACK |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–30 N |
Key Features
- 3.6 mm
- 5-pin waterproof audio jack (board-mount plug-in type)
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

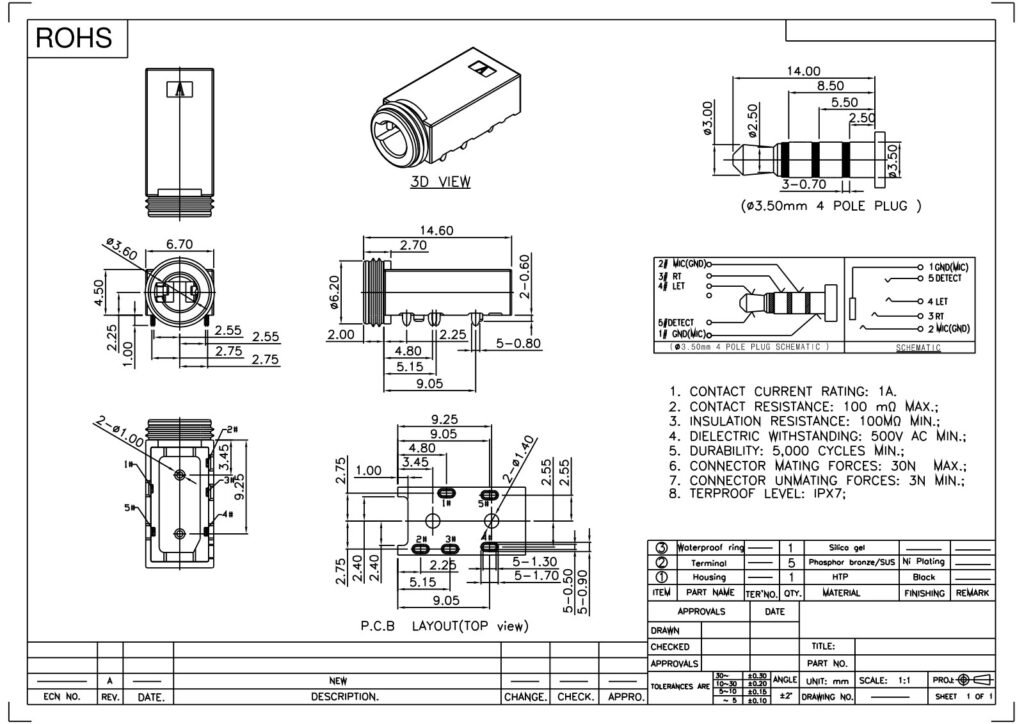

Drawing & Dimensions
GSC-AUD-0008 is an audio connector, 3.6 mm, 5-pin waterproof audio jack (board-mount plug-in type).
| Series | AUDIO JACK |
|---|---|
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–30 N |
