Micro SD Card Socket SMD TF Card Socket SD Card Connector – GSC-MSD-0036
Micro SD / TFSMT
GSC-MSD-0036 is a micro SD / TF connector, micro SD PUSH H=1.5mm (Surface-Mount Type), Housing Without Holes. GSCONN part GSC-MSD-0036.
Surface MountSMT termination
Technical Specifications
| Series | Micro SD |
| Type | Plug-in / H=1.5mm |
| Service life | 5,000 cycles |
| Thickness | 1.5 mm |
Key Features
- Micro SD PUSH H=1.5mm (Surface-Mount Type)
- Housing Without Holes
- Service life 5,000 cycles
Applications
- Mobile phones
- Cameras and dash cams
- Portable storage
- IoT and embedded devices

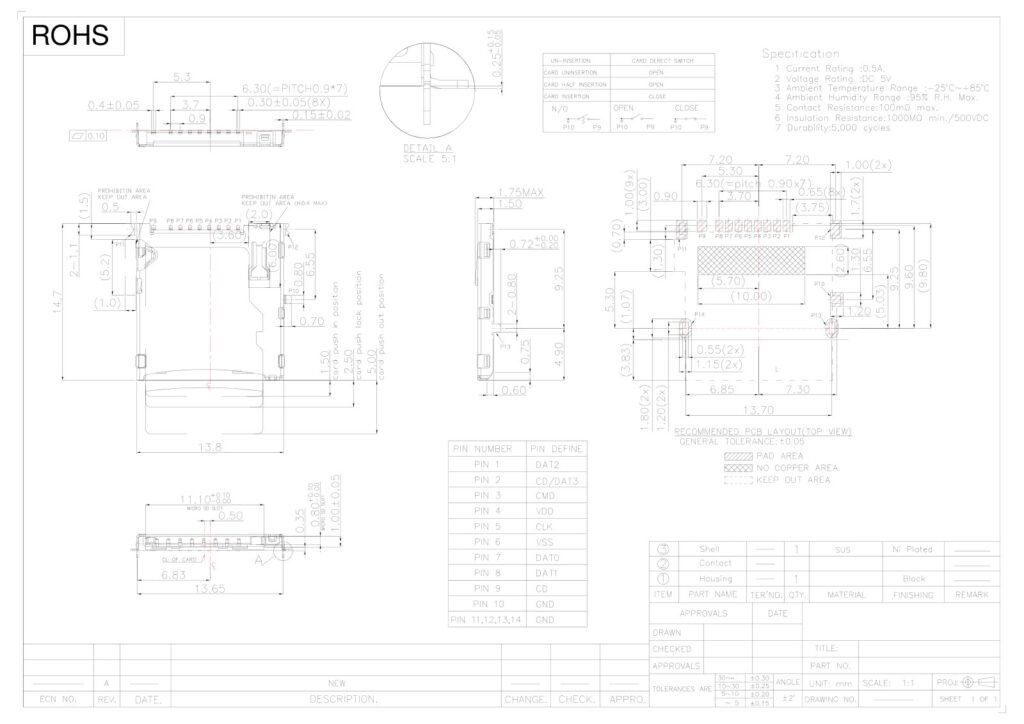

Drawing & Dimensions
GSC-MSD-0036 is a micro SD / TF connector, micro SD PUSH H=1.5mm (Surface-Mount Type), Housing Without Holes.
| Series | Micro SD |
|---|---|
| Type | Plug-in / H=1.5mm |
| Service life | 5,000 cycles |
| Thickness | 1.5 mm |
