Modified Single-Layer USB 2.0 90 Degree Connector – C040080
USB 2.0480MbpsBoard-Mount
Designed for OEM board-mount integration, this 2.0 Standard connector features single-layer board-mount construction with right-angle cable exit for horizontal board integration....
2.0 Standard interfaceUSB 2.0 baseline throughput
Single-layer PCB designSingle-row straight pin layout
90° exit angleRight-angle cable exit
480Mbps full-speed signalingStandardized 0.1" pin pitch
Technical Specifications
| USB Version | USB 2.0 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 480Mbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 2.0 Standard connector supporting standard 2.0 data protocols
- Single-layer PCB design with 90° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Modified contact geometry optimized for specific mating and retention requirements
- Suitable for IoT gateway and edge-computing data acquisition
- Operating temperature -40°C to +85°C for industrial and automotive deployment
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

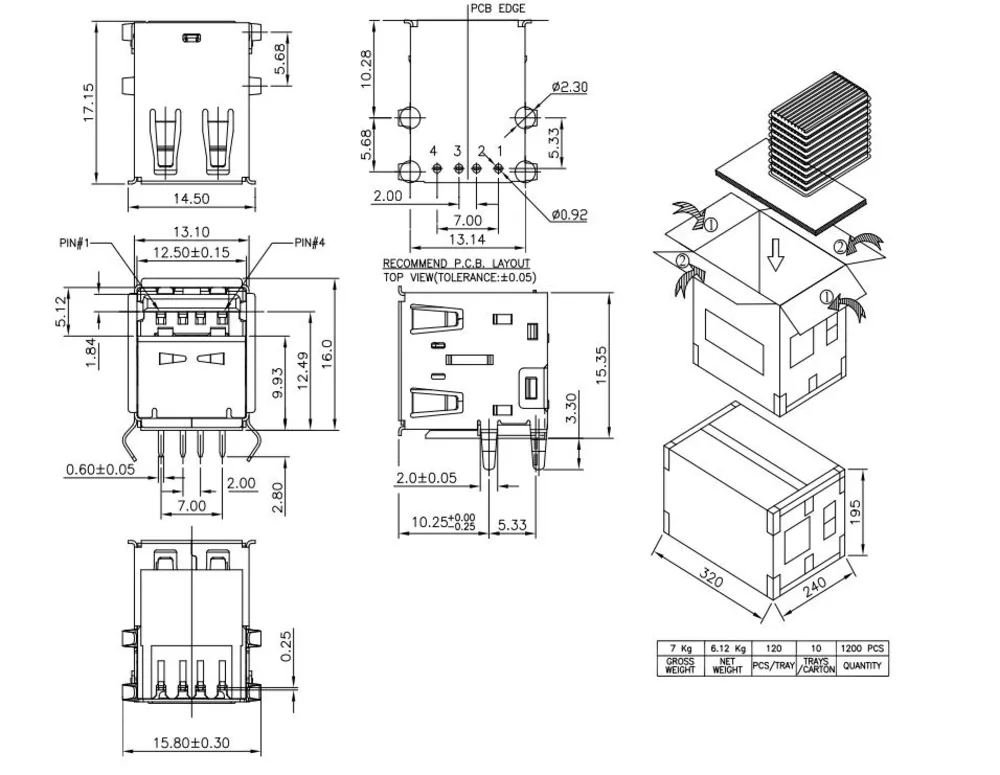

Product Drawing
Designed for OEM board-mount integration, this 2.0 Standard connector features single-layer board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Operating temperature range supports -40°C to +85°C industrial deployment across harsh environments. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
