Technical Specifications
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
Key Features
- Hi-Temp Temperature, UL94V-0, Black
- Copper Alloy contact system
- Stainless steel shell
- Rated 0.5 AMP
- 500V AC/Minute dielectric withstanding voltage
- Contact resistance 100mΩ Max.
- Insulation resistance 500MΩ Min.
- 10000 Insertions mating cycles
Applications
- Mobile devices
- Industrial control equipment
- Data storage equipment
Drawing & Dimensions

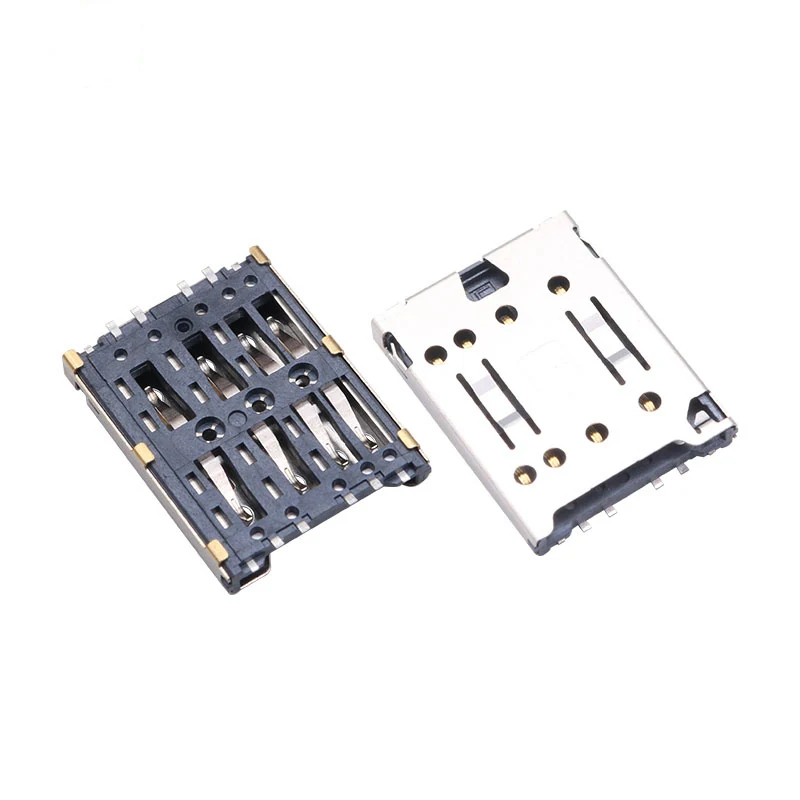

GSC-NMC-0001 is a NM card connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000 Insertions, insulation resistance 500MΩ Min., contact resistance 100mΩ Max. Typical applications include Mobile devices, Industrial control equipment, and Data storage equipment.
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
