Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector – C023552
USB 2.0480MbpsReverse-Mount
Manufactured to USB-IF compliance standards, this 2.0 Standard connector features single-layer board-mount construction with right-angle cable exit for horizontal board...
2.0 Standard interface480Mbps full-speed transfer
Single-layer PCB designSingle-row pin configuration
90° exit angleHorizontal cable routing
Plug-and-play USB 2.0 standardStandard 2.54mm pitch profile
Technical Specifications
| USB Version | USB 2.0 |
| Connector Type | USB Connector |
| Mount Type | Reverse-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 480Mbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 2.0 Standard connector supporting standard 2.0 data protocols
- Single-layer PCB design with 90° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Reverse-Mount contact geometry optimized for specific mating and retention requirements
- Polarized housing design prevents incorrect insertion and contact damage
- Compatible with networking equipment, routers, and switching hardware
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

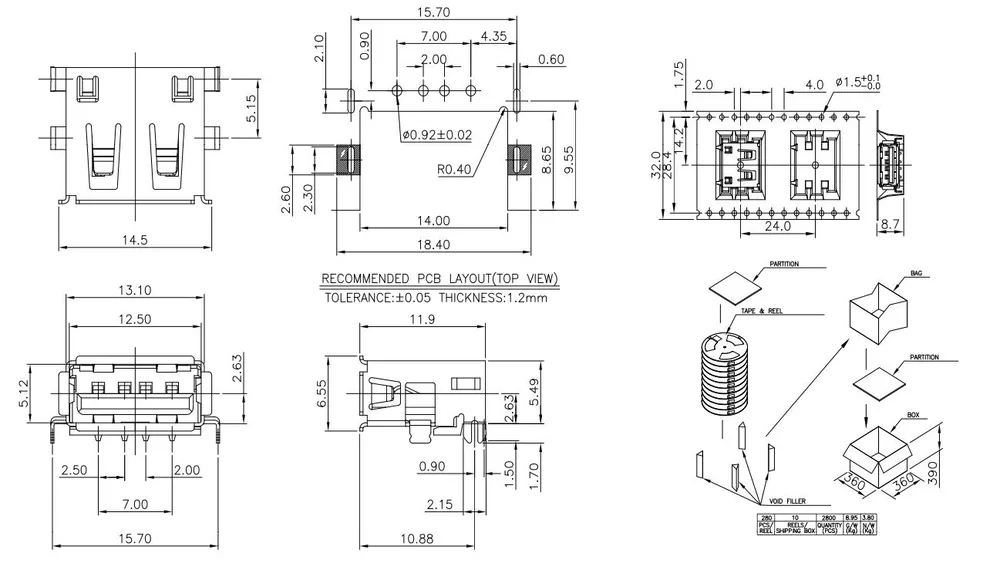

Product Drawing
Manufactured to USB-IF compliance standards, this 2.0 Standard connector features single-layer board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
