Reverse USB 3.0 Side-Mount Forked-Pin Connector – C071323

Name: USB 3.0 Single-Layer 90 Degree Connector - C071323 | GSCONN
Brand: GSCONN

USB 3.05GbpsSide-Mount

Tags:

#Forked-Pin #Reverse #Side-Mount #USB 3.0 #USB Connector

Designed for OEM board-mount integration, this 3.0 Standard connector features standard board-mount construction with side-mount edge-card orientation for compact board edges. The...

Request a Quote →

3.0 Standard interfaceUSB 3.0 SuperSpeed data path

Single-layer PCB designStandard pin configuration

side exit angleSide-edge PCB mount

5Gbps data rate complianceStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 3.0
Connector Type	USB Connector
Mount Type	Side-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	5Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.0 Standard connector supporting standard 3.0 data protocols
Single-layer PCB design with side cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Forked-Pin contact geometry optimized for specific mating and retention requirements
Suitable for charging and sync operations on portable consumer devices
Suitable for consumer electronics, computing peripherals, and industrial control

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

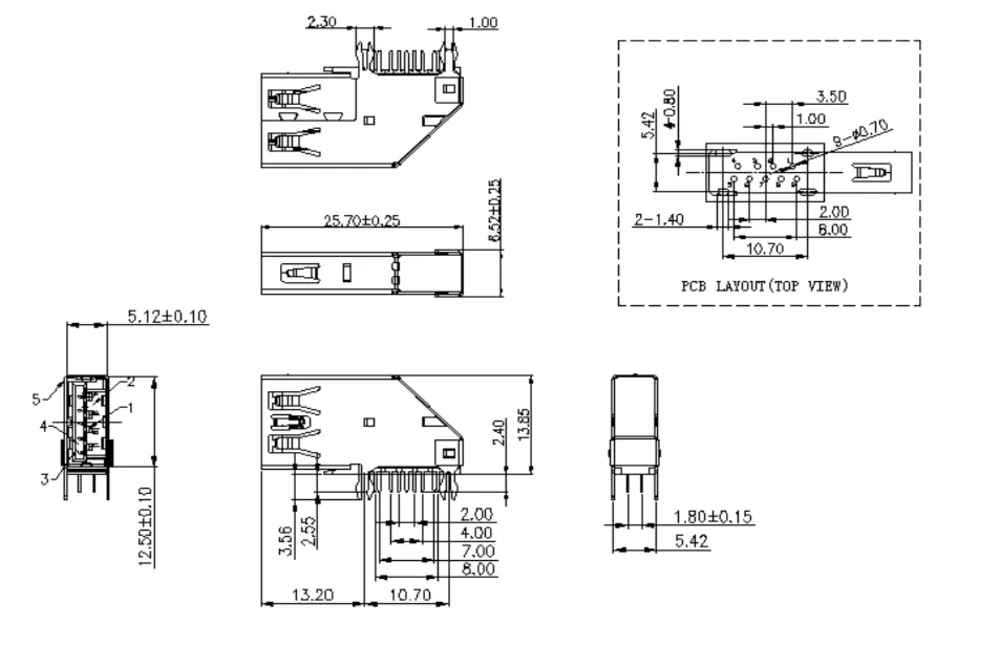

Product Drawing

Designed for OEM board-mount integration, this 3.0 Standard connector features standard board-mount construction with side-mount edge-card orientation for compact board edges. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
