Technical Specifications
| Type | Push PUSH |
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
Key Features
- Push PUSH card insertion
- Hi-Temp Temperature, UL94V-0, Black
- Copper Alloy contact system
- Stainless steel shell
- Rated 0.5 AMP
- 500V AC/Minute dielectric withstanding voltage
- Contact resistance 100mΩ Max.
- Insulation resistance 500MΩ Min.
Applications
- Consumer electronics
- Industrial data loggers
- Dash cams and surveillance
- POS terminals
Drawing & Dimensions

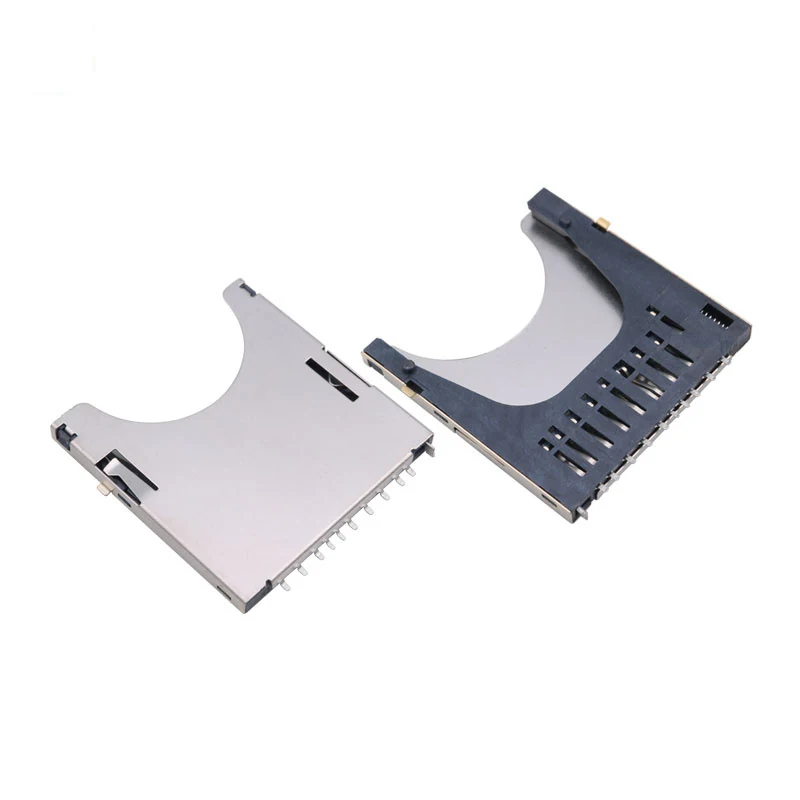

GSC-SDC-0002 is a Push PUSH connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000 Insertions, insulation resistance 500MΩ Min., contact resistance 100mΩ Max. Typical applications include Consumer electronics, Industrial data loggers, Dash cams and surveillance, and POS terminals.
| Type | Push PUSH |
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
