Technical Specifications
| Product Type | MICRO SD |
| Gender | Female, Female |
| Number of Contacts | 8P |
| Contact Material | Copper alloy |
| Insulation Resistance | 1000M Ohms mi |
| Mating Cycles | 5000 insertions |
| Card Type | SD |
Key Features
- MICRO SD
- Female, Female connector
- 8P contacts
- Copper alloy contact material
- 1000M Ohms mi insulation resistance
- 5000 insertions mating cycles
- SD card type
Applications
- Consumer electronics
- Industrial data loggers
- Dash cams and surveillance
- POS terminals
Drawing & Dimensions

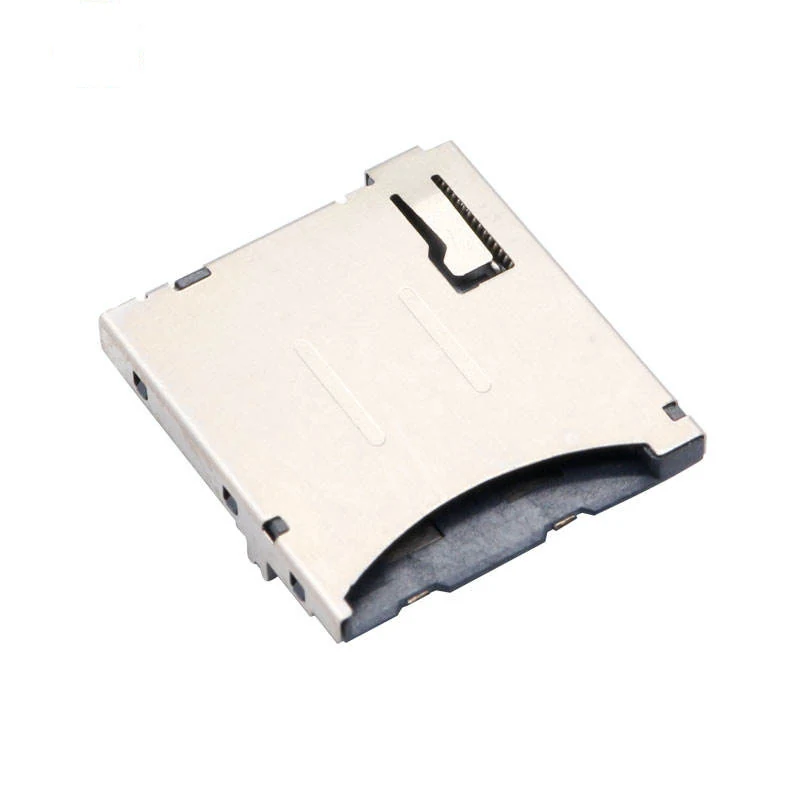

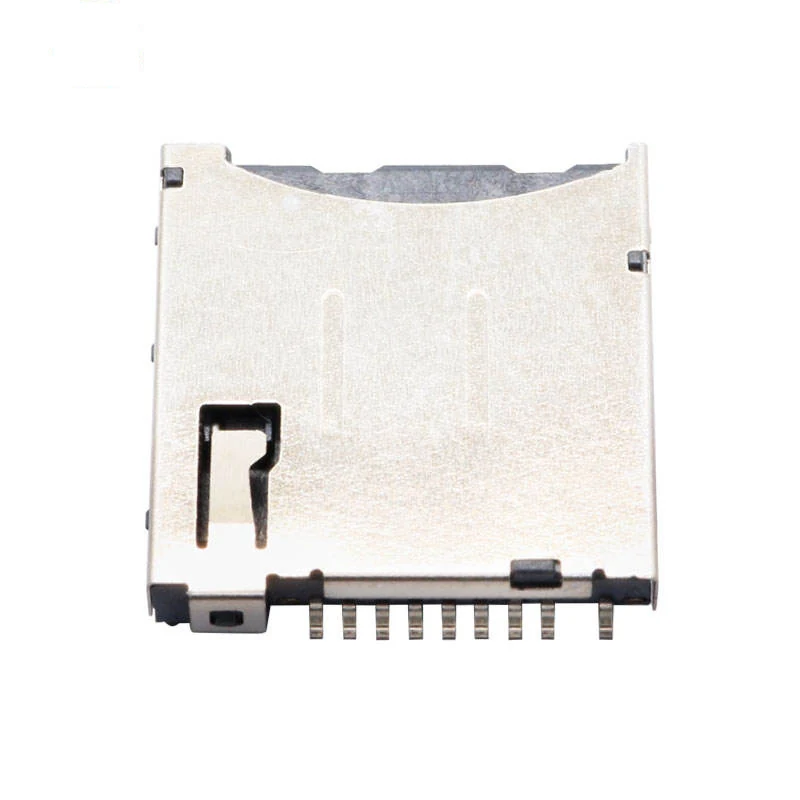

GSC-MSD-0025 is an 8-contact MICRO SD connector. The contact system is Copper alloy. Mechanically it offers mating durability of 5000 insertions, insulation resistance 1000M Ohms mi. Typical applications include Consumer electronics, Industrial data loggers, Dash cams and surveillance, and POS terminals.
| Product Type | MICRO SD |
| Gender | Female, Female |
| Number of Contacts | 8P |
| Contact Material | Copper alloy |
| Insulation Resistance | 1000M Ohms mi |
| Mating Cycles | 5000 insertions |
| Card Type | SD |
