Side-Mount USB 2.0 90 Degree Bent-Pin Connector – C071171

Name: USB 2.0 Single-Layer 90 Degree Connector - C071171 | GSCONN
Brand: GSCONN

USB 2.0480MbpsSide-Mount

Tags:

#90 Degree #Bent-Pin #Side-Mount #USB 2.0 #USB Connector

Manufactured to USB-IF compliance standards, this 2.0 Standard connector features standard board-mount construction with right-angle cable exit for horizontal board integration....

Request a Quote →

2.0 Standard interface480Mbps full-speed transfer

Single-layer PCB designStandard pin configuration

90° exit angleHorizontal cable routing

Plug-and-play USB 2.0 standardStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Connector
Mount Type	Side-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.5A
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Phosphor Bronze, half gold-tin plated
Insulator Material	PBT/High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Standard connector supporting standard 2.0 data protocols
Single-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Bent-Pin contact geometry optimized for specific mating and retention requirements
Suitable for high-vibration installations including marine and rail
Compatible with standard USB cable assemblies for plug-and-play deployment

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

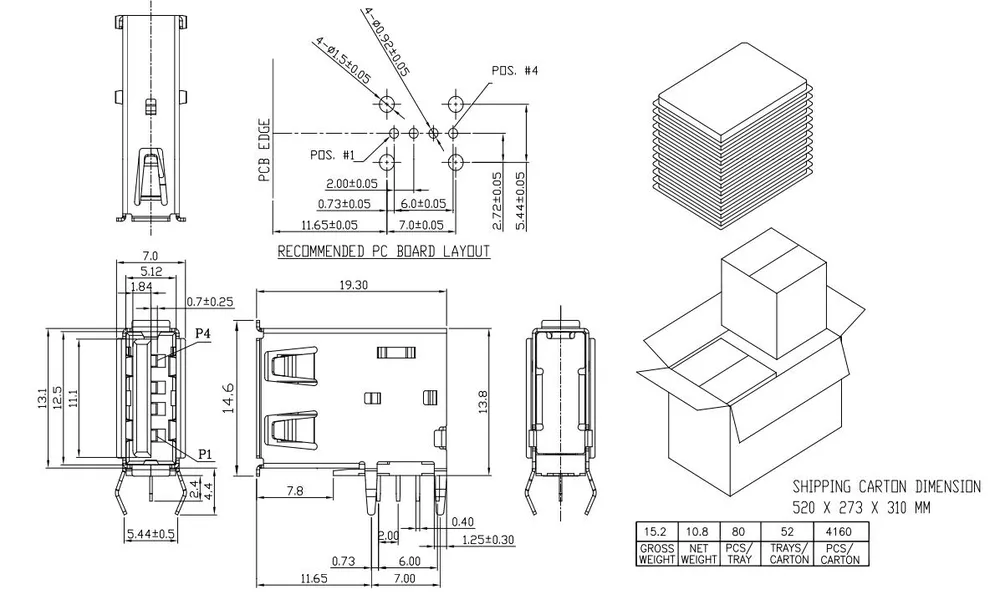

Product Drawing

Manufactured to USB-IF compliance standards, this 2.0 Standard connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Compatible with hand-soldering, wave-soldering, and reflow-soldering processes for flexible production deployment. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
