Side-Mount USB 2.0 90 Degree Straight-Pin Connector – C071121
USB 2.0480MbpsSide-Mount
Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The...
2.0 Standard interfaceUSB 2.0 baseline throughput
None-layer PCB designStandard pin configuration
90° exit angleRight-angle cable exit
480Mbps full-speed signalingHigh-density PCB layout
Technical Specifications
| USB Version | USB 2.0 |
| Connector Type | USB Connector |
| Mount Type | Side-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 480Mbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 2.0 Standard connector supporting standard 2.0 data protocols
- None-layer PCB design with 90° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Straight-Pin contact geometry optimized for specific mating and retention requirements
- Compatible with gaming peripherals, keyboards, mice, and high-speed I/O
- Suitable for renewable energy monitoring and smart-grid telemetry
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

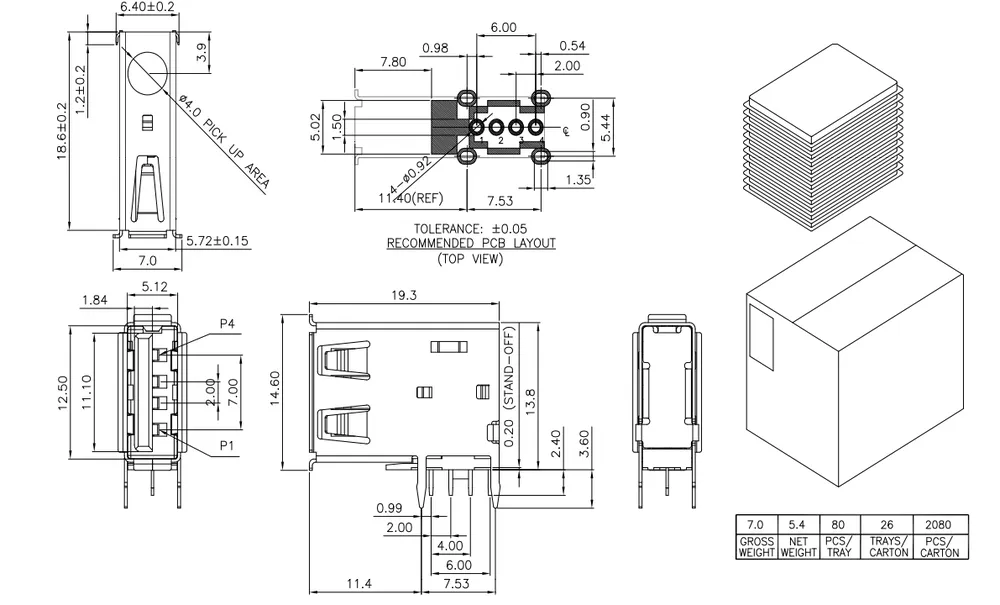

Product Drawing
Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
