SMD SIM Card Holder SIM Card Socket – GSC-SIM-0038
SIM16 PinSMT
GSC-SIM-0038 is a SIM connector, 2.7 mm thickness, 16-pin plug-in (surface-mount) SIM card socket. GSCONN part GSC-SIM-0038.
Surface MountSMT termination
16 PinContact count
Technical Specifications
| Series | SIM CARD |
| Type | Plug-in |
| Service life | 5,000 cycles |
| Operating force | 500 gf |
Key Features
- 2.7 mm thickness
- 16-pin plug-in (surface-mount) SIM card socket
- Service life 5,000 cycles
Applications
- Mobile phones
- Tablets and wearables
- IoT modules
- Point-of-sale terminals

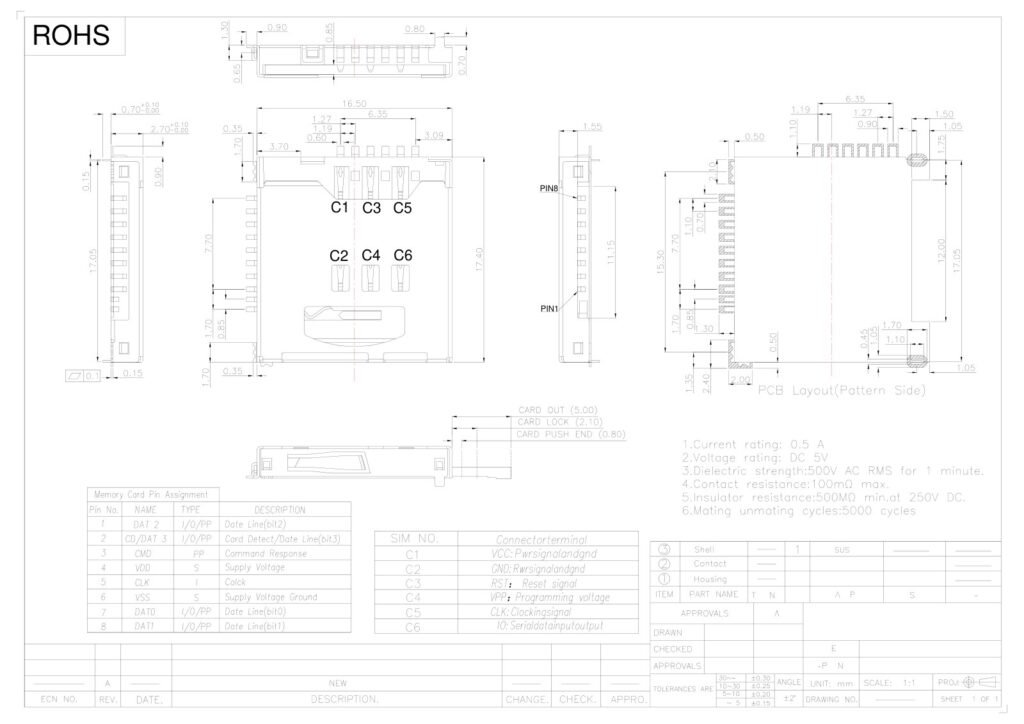

Drawing & Dimensions
GSC-SIM-0038 is a SIM connector, 2.7 mm thickness, 16-pin plug-in (surface-mount) SIM card socket.
| Series | SIM CARD |
|---|---|
| Type | Plug-in |
| Service life | 5,000 cycles |
| Operating force | 500 gf |
