Technical Specifications
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
Key Features
- Hi-Temp Temperature, UL94V-0, Black
- Copper Alloy contact system
- Stainless steel shell
- Rated 0.5 AMP
- 500V AC/Minute dielectric withstanding voltage
- Contact resistance 100mΩ Max.
- Insulation resistance 500MΩ Min.
- 10000 Insertions mating cycles
Applications
- Consumer electronics
- Industrial data loggers
- Dash cams and surveillance
- POS terminals

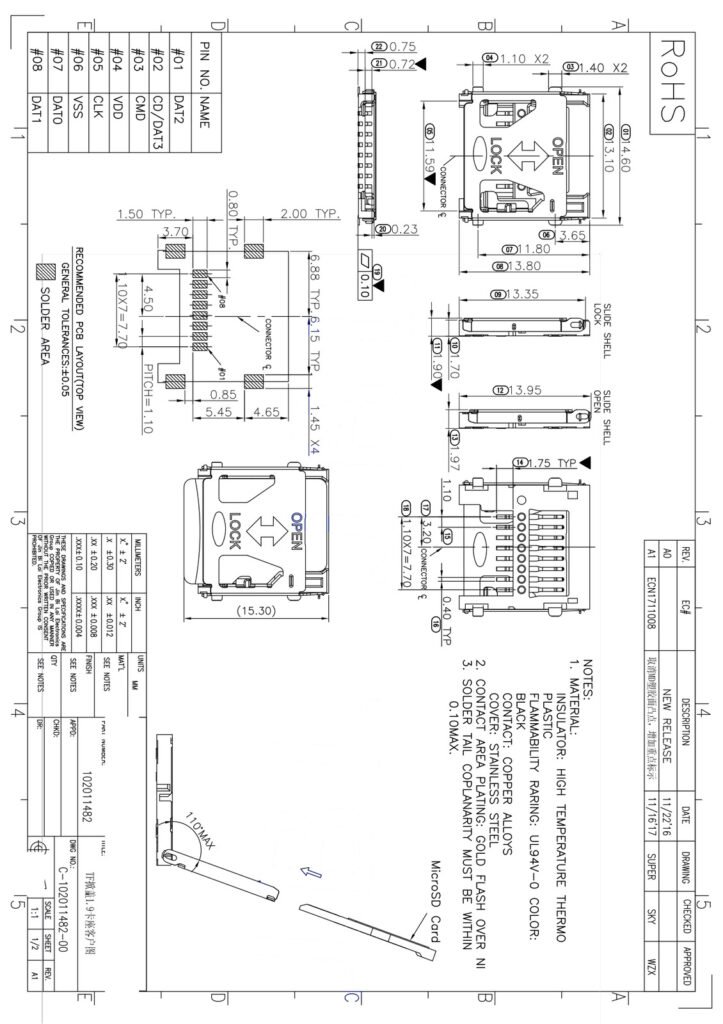

Drawing & Dimensions

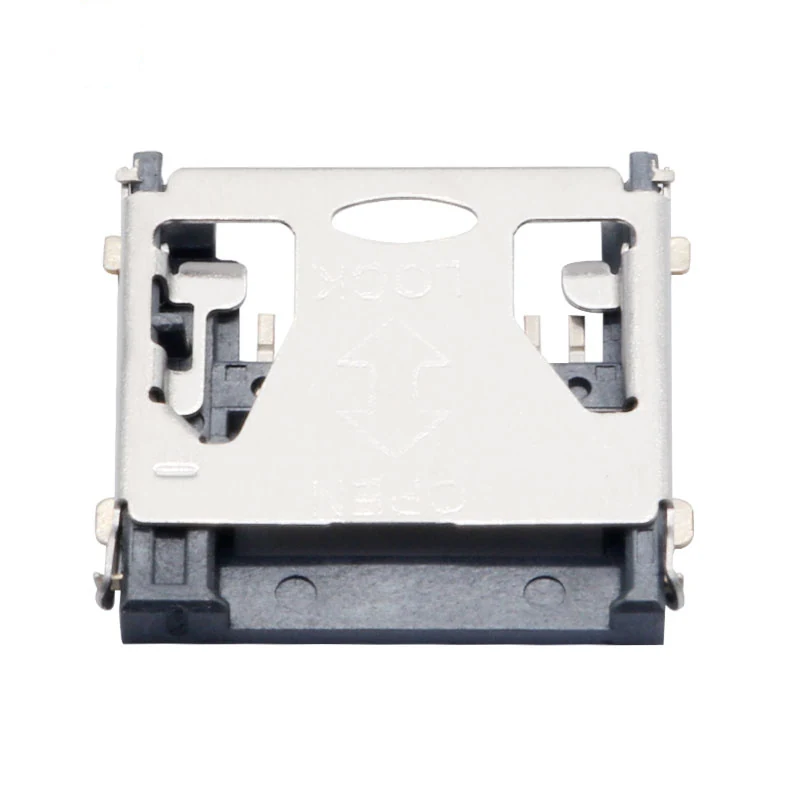

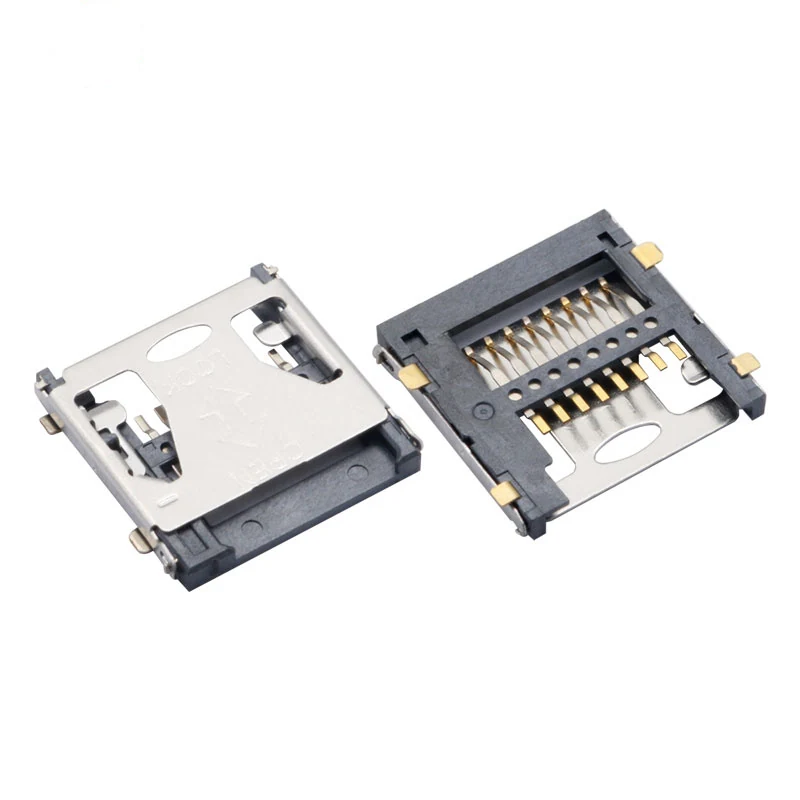

GSC-SDC-0003 is a SD card connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000 Insertions, insulation resistance 500MΩ Min., contact resistance 100mΩ Max. Typical applications include Consumer electronics, Industrial data loggers, Dash cams and surveillance, and POS terminals.
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
