TYPE-C male connector TYPE-C plug TYPE-C socket – GSC-TYP-0163

TYPE-C male connector TYPE-C plug TYPE-C socket – GSC-TYP-0163

Type C12 PinSMT
Tags:
#12 Pin#PCB#SMT#USB Connector#USB Type-C
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0163 is a type C 12-contact connector, 8.25×13.6×2.4 mm, universal type, 12P (surface-mount), Type-C male connector. GSCONN part GSC-TYP-0163.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
12 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeUniversal / 12P
Mating cycles10,000 cycles
Insertion / Removal force0.5–2.0 kgf

Key Features

  • 8.25×13.6×2.4 mm
  • universal type
  • 12P (surface-mount)
  • Type-C male connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

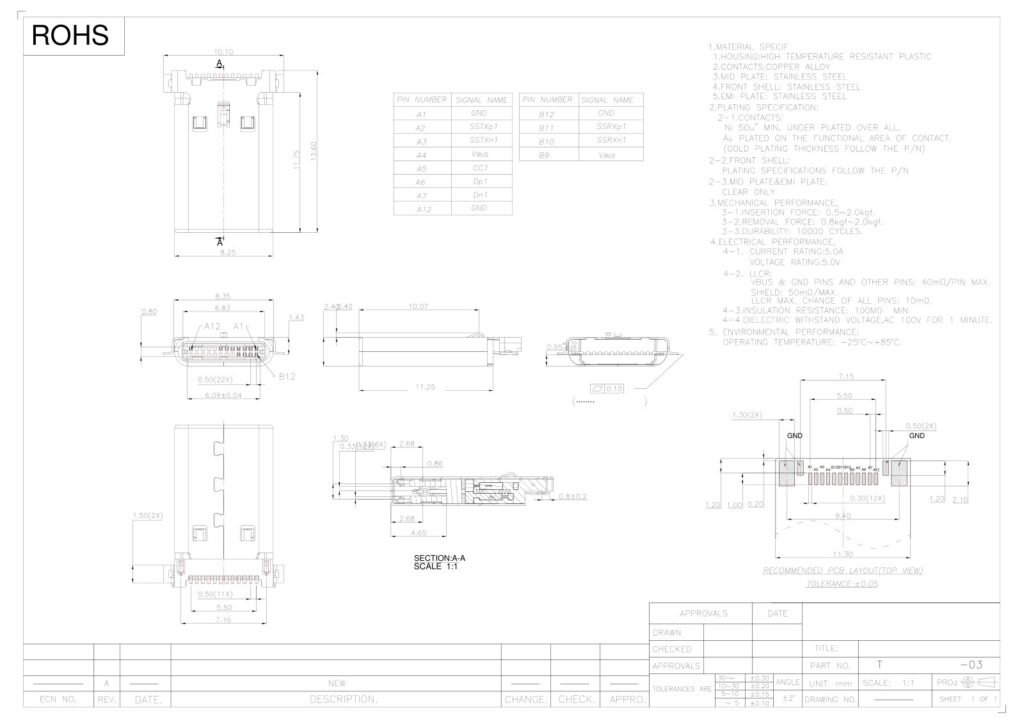

TYPE-C male connector TYPE-C plug TYPE-C socket – GSC-TYP-0163 drawing

GSC-TYP-0163 is a type C 12-contact connector, 8.25×13.6×2.4 mm, universal type, 12P (surface-mount), Type-C male connector.

Series TYPE-C JACKES
Type Universal / 12P
Mating cycles 10,000 cycles
Insertion / Removal force 0.5–2.0 kgf

Downloads

Technical DrawingPDF · 88 KB
