TYPE-C socket 16P waterproof TYPE-C female connector surface-mount type interface – GSC-TYP-0201
Type C16 PinSMT
GSC-TYP-0201 is a type C 16-contact connector, all-in-one IPX7 16-pin surface-mount TYPE-C connector. GSCONN part GSC-TYP-0201.
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Full-coverage IPX7 / 16P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- All‑in‑one IPX7 16‑pin surface-mount TYPE‑C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

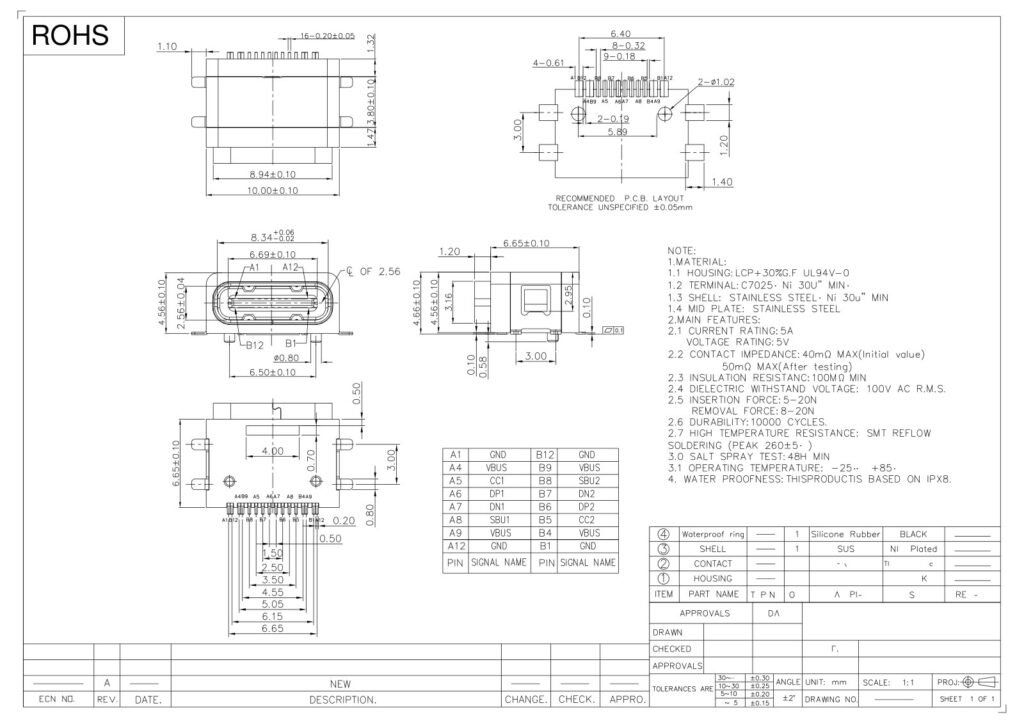

Drawing & Dimensions
GSC-TYP-0201 is a type C 16-contact connector, all-in-one IPX7 16-pin surface-mount TYPE-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Full-coverage IPX7 / 16P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
