TYPE-C Socket 16P Waterproof TYPE-C Female Connector Vertical TYPE-C Interface – GSC-TYP-0145

TYPE-C Socket 16P Waterproof TYPE-C Female Connector Vertical TYPE-C Interface – GSC-TYP-0145

Type C16 PinWaterproof
Tags:
#16 Pin#Receptacle#USB Connector#USB Type-C#Vertical#Waterproof
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0145 is a type C 16-contact connector, 12×5.81×H10.2mm, waterproof to IPX7, 16P (board-mount type), TYPE-C connector. GSCONN part GSC-TYP-0145.

Request a Quote → Download Datasheet
WaterproofRated waterproof construction
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeWaterproof rating IPX7 / 16P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 12×5.81×H10.2mm
  • waterproof to IPX7
  • 16P (board-mount type)
  • TYPE-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels

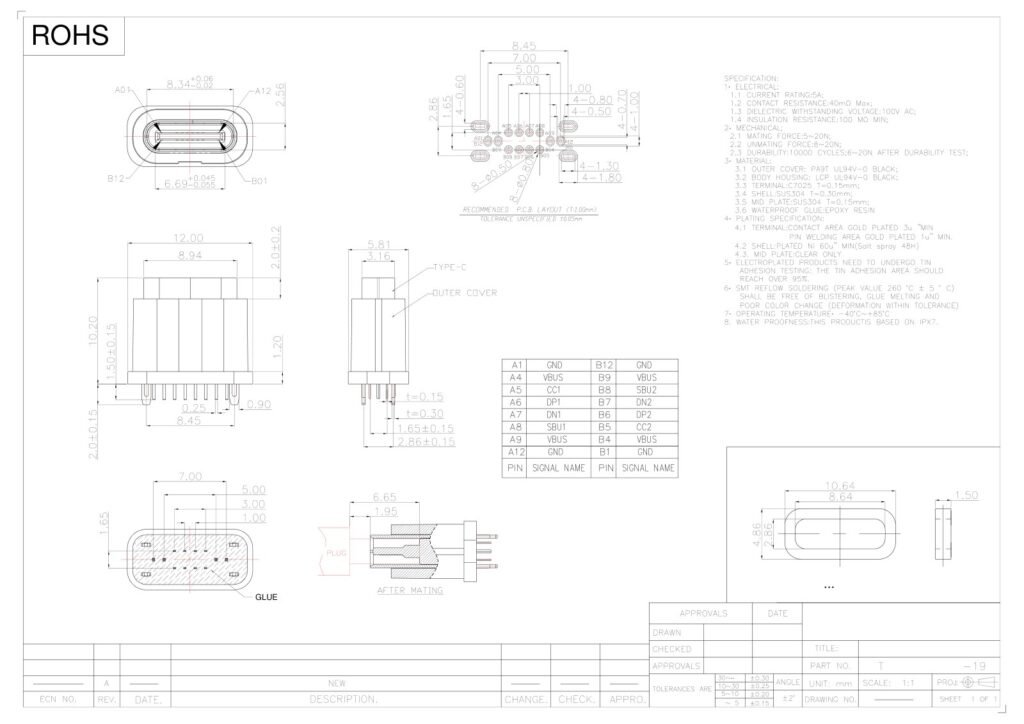

Drawing & Dimensions
TYPE-C Socket 16P Waterproof TYPE-C Female Connector Vertical TYPE-C Interface – GSC-TYP-0145 drawing

GSC-TYP-0145 is a type C 16-contact connector, 12×5.81×H10.2mm, waterproof to IPX7, 16P (board-mount type), TYPE-C connector.

Series TYPE-C JACKES
Type Waterproof rating IPX7 / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 93 KB
