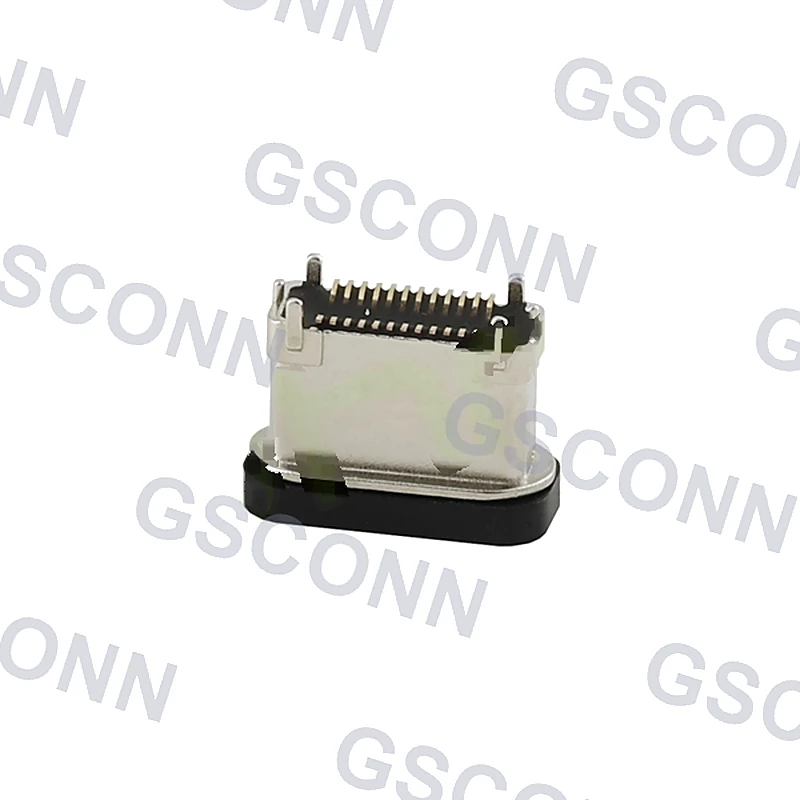

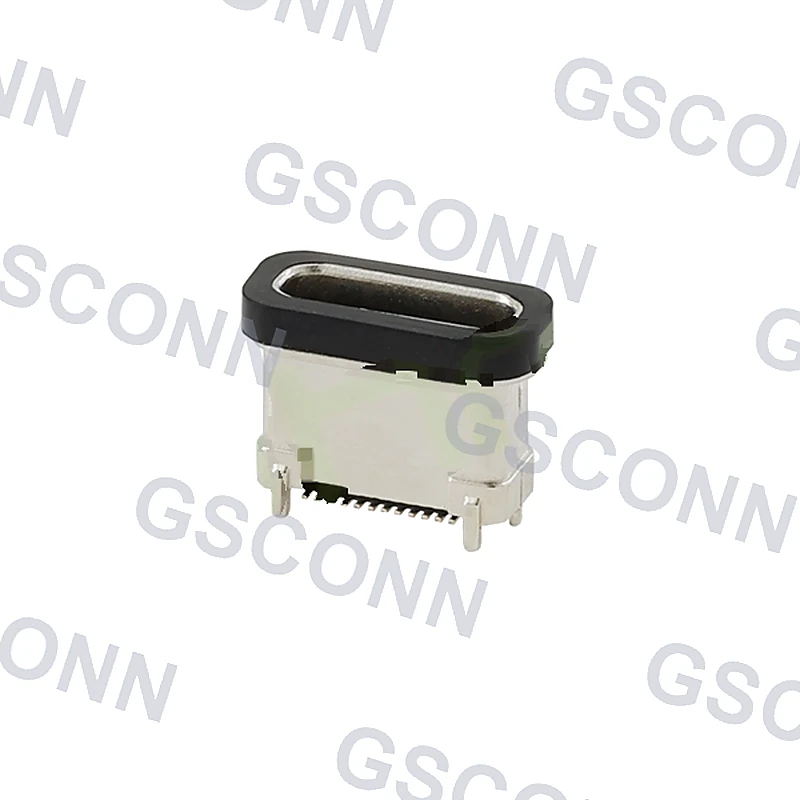

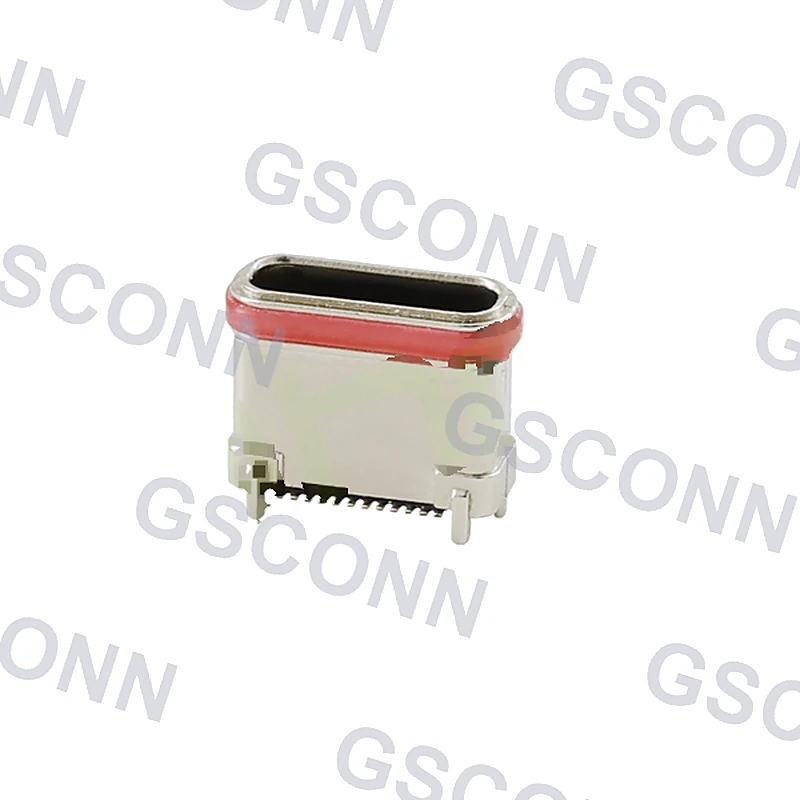

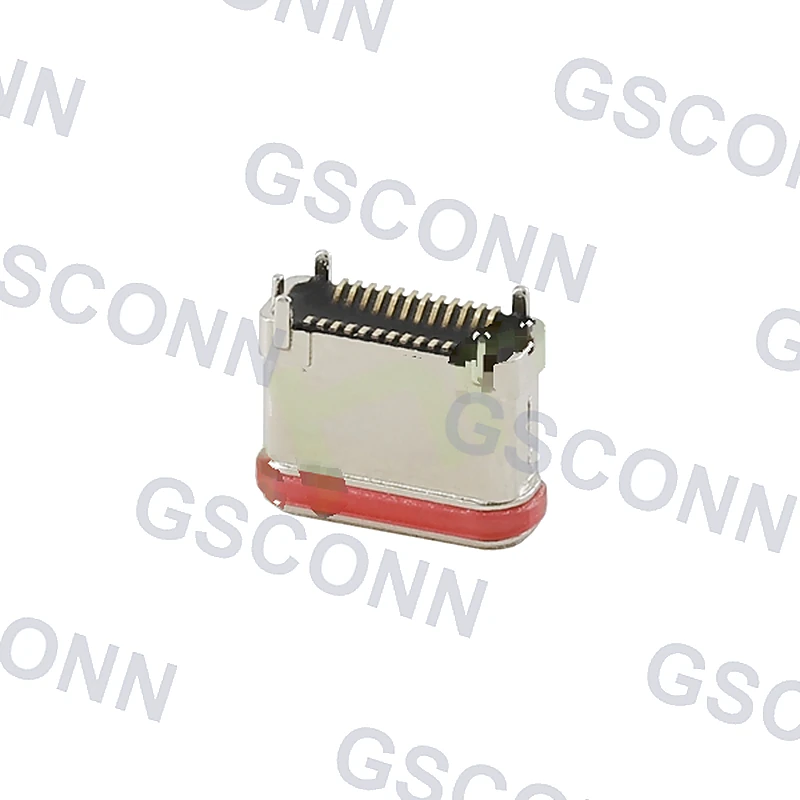

GSC-TYP-0139 is a type C 24-contact connector, single-ribbed & Double-ribbed H=7.5mm IPX7 24P (Surface-Mount Type) TYPE-C Connector. GSCONN part GSC-TYP-0139.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
24 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeSingle-reinforcement & Double-reinforcement IPX7 / 24P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • Single‑ribbed & Double‑ribbed H=7.5mm IPX7 24P (Surface‑Mount Type) TYPE‑C Connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

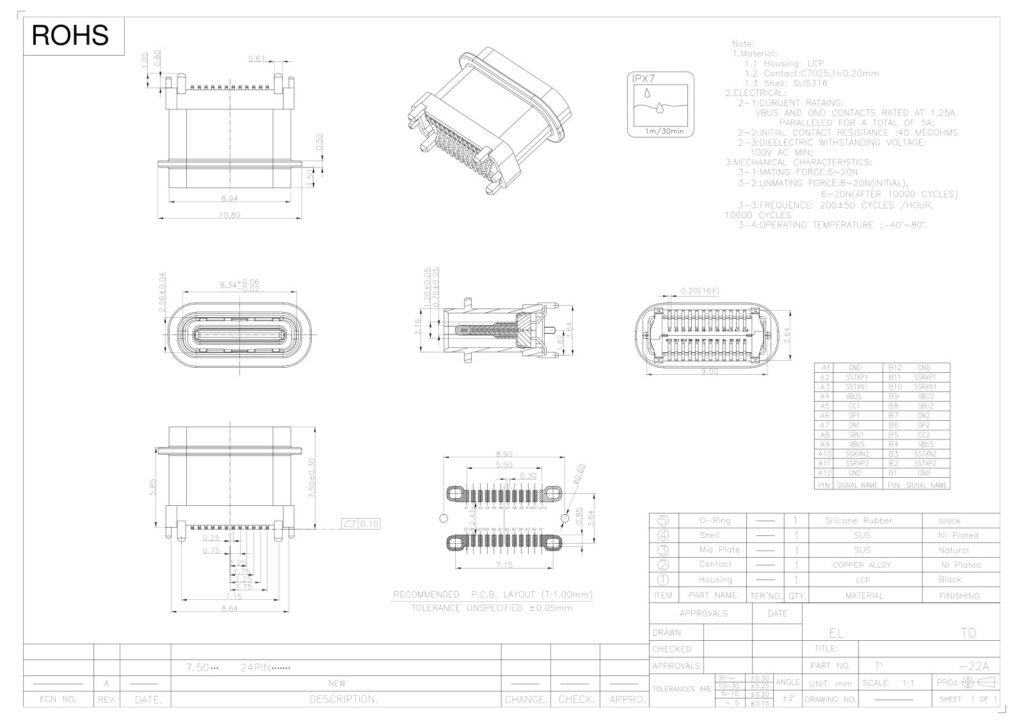

TYPE-C Socket 24P Waterproof TYPE-C Female Connector Single-Rib & Double-Rib Interface – GSC-TYP-0139 drawing

GSC-TYP-0139 is a type C 24-contact connector, single-ribbed & Double-ribbed H=7.5mm IPX7 24P (Surface-Mount Type) TYPE-C Connector.

Series TYPE-C JACKES
Type Single-reinforcement & Double-reinforcement IPX7 / 24P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N
