TYPE-C Socket Horizontal TYPE-C Female Connector Raised by 0.6 mm 16-Pin Interface – GSC-TYP-0098

TYPE-C Socket Horizontal TYPE-C Female Connector Raised by 0.6 mm 16-Pin Interface – GSC-TYP-0098

Type C16 PinSMTRight Angle
Tags:
#16 Pin#PCB#Receptacle#Right Angle#SMT#USB Connector#USB Type-C
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0098 is a type C 16-contact connector, horizontal 16P, raised by 0.6 mm (surface-mount type), with a Type-C connector. GSCONN part GSC-TYP-0098.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeHeightened by 0.6 mm / 16P
Mating cycles10,000 cycles
Insertion / Removal force0.5–2.0 kgf

Key Features

  • Horizontal 16P
  • raised by 0.6 mm (surface-mount type)
  • with a Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels

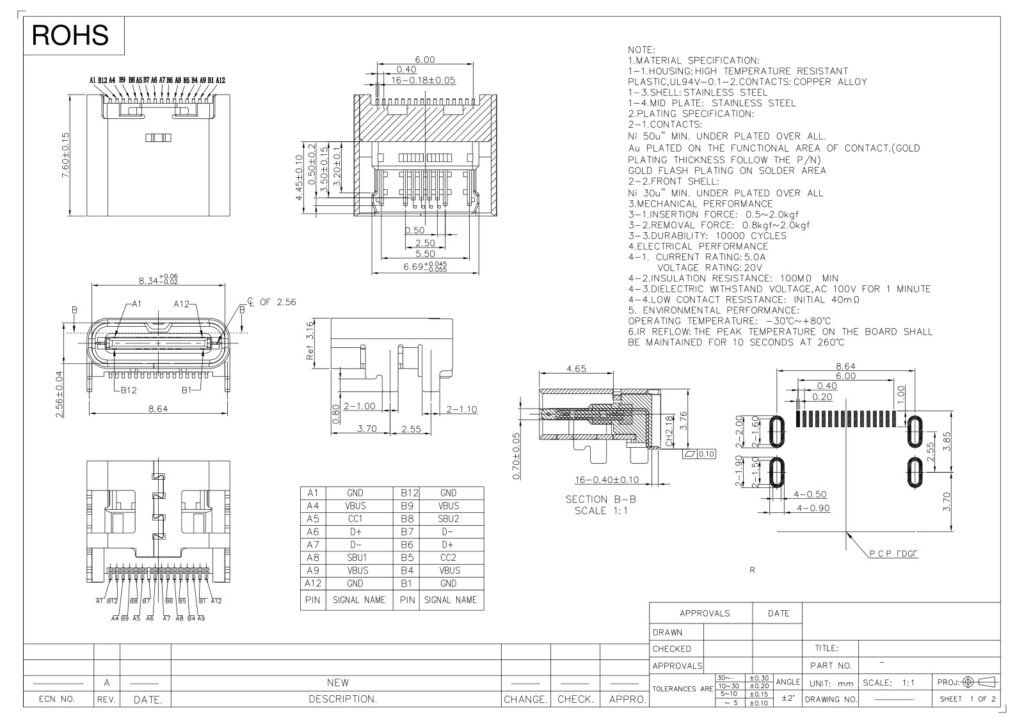

Drawing & Dimensions
TYPE-C Socket Horizontal TYPE-C Female Connector Raised by 0.6 mm 16-Pin Interface – GSC-TYP-0098 drawing

GSC-TYP-0098 is a type C 16-contact connector, horizontal 16P, raised by 0.6 mm (surface-mount type), with a Type-C connector.

Series TYPE-C JACKES
Type Heightened by 0.6 mm / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 0.5–2.0 kgf

Downloads

Technical DrawingPDF · 200 KB
