TYPE-C Socket Socketed 1.6mm TYPE-C Female Connector 6-Pin Interface – GSC-TYP-0099
Type C6 PinSMTRight Angle
GSC-TYP-0099 is a type C 6-contact connector, horizontal 6P SMT board, 1.6 mm thick, with a Type-C connector. GSCONN part GSC-TYP-0099.
Surface MountSMT termination
3,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | 1.6mm countersunk / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 0.5–2.0 kgf |
Key Features
- Horizontal 6P SMT board
- 1.6 mm thick
- with a Type‑C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

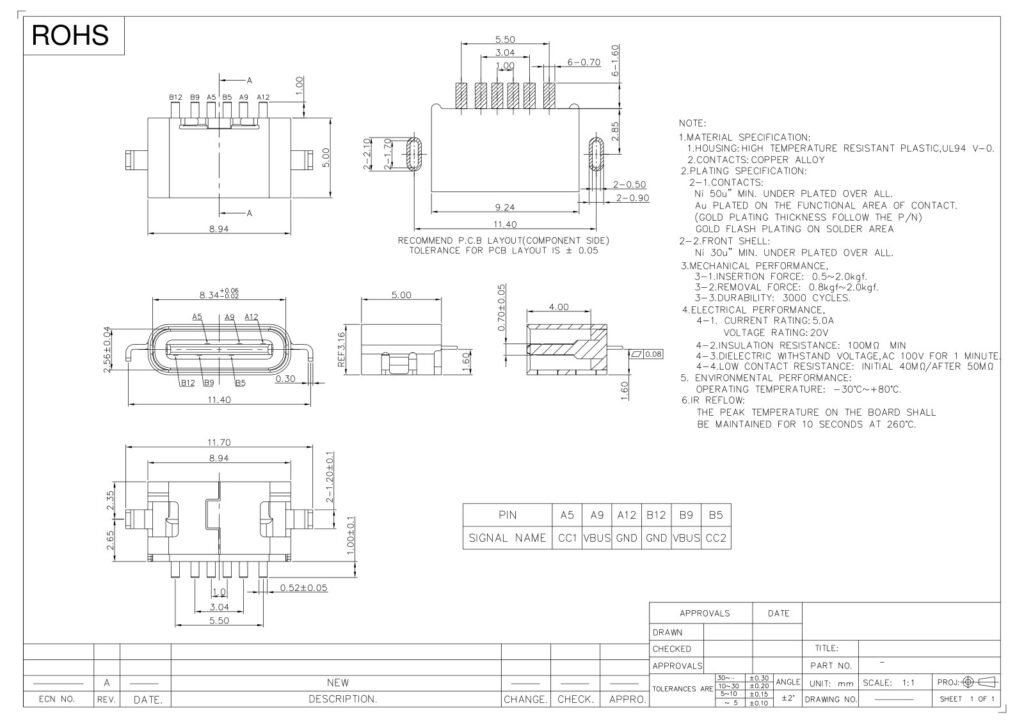

Drawing & Dimensions
GSC-TYP-0099 is a type C 6-contact connector, horizontal 6P SMT board, 1.6 mm thick, with a Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | 1.6mm countersunk / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 0.5–2.0 kgf |
