TYPE-C socket TYPE-C female connector 16-pin short-body interface – GSC-TYP-0110
Type C16 PinSMT
GSC-TYP-0110 is a type C 16-contact connector, 11.24×4.5×3.16 mm, short-body, surface-mount, 16-pin Type-C connector. GSCONN part GSC-TYP-0110.
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Short-body, deep-plate style / 16P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–2.0 kgf |
Key Features
- 11.24×4.5×3.16 mm
- short-body
- surface-mount
- 16-pin Type-C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

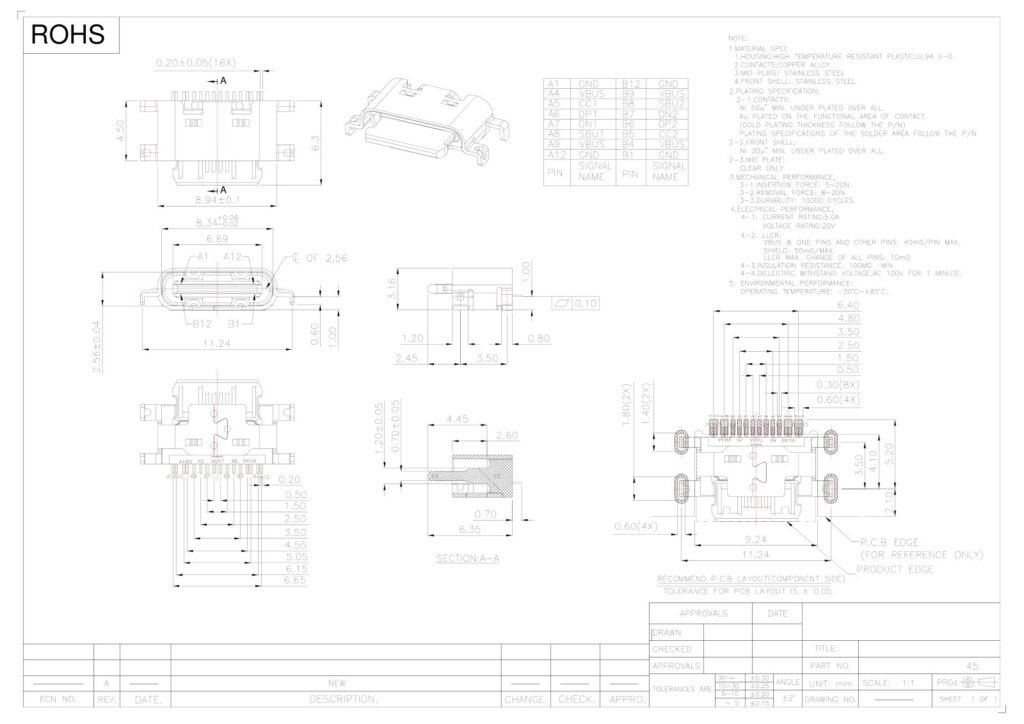

Drawing & Dimensions
GSC-TYP-0110 is a type C 16-contact connector, 11.24×4.5×3.16 mm, short-body, surface-mount, 16-pin Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Short-body, deep-plate style / 16P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–2.0 kgf |
