TYPE-C Socket TYPE-C Female Connector 16P / Without Spring Contact & With Spring Contact – GSC-TYP-0116

TYPE-C Socket TYPE-C Female Connector 16P / Without Spring Contact & With Spring Contact – GSC-TYP-0116

Type C16 PinSMT
Tags:
#16 Pin#PCB#Receptacle#SMT#USB Connector#USB Type-C
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0116 is a type C 16-contact connector, 8.94×7.32×4.25 mm, 16 pins / without spring contacts & with spring contacts (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0116.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
Type16P / No shrapnel & With shrapnel
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 8.94×7.32×4.25 mm
  • 16 pins / without spring contacts & with spring contacts (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

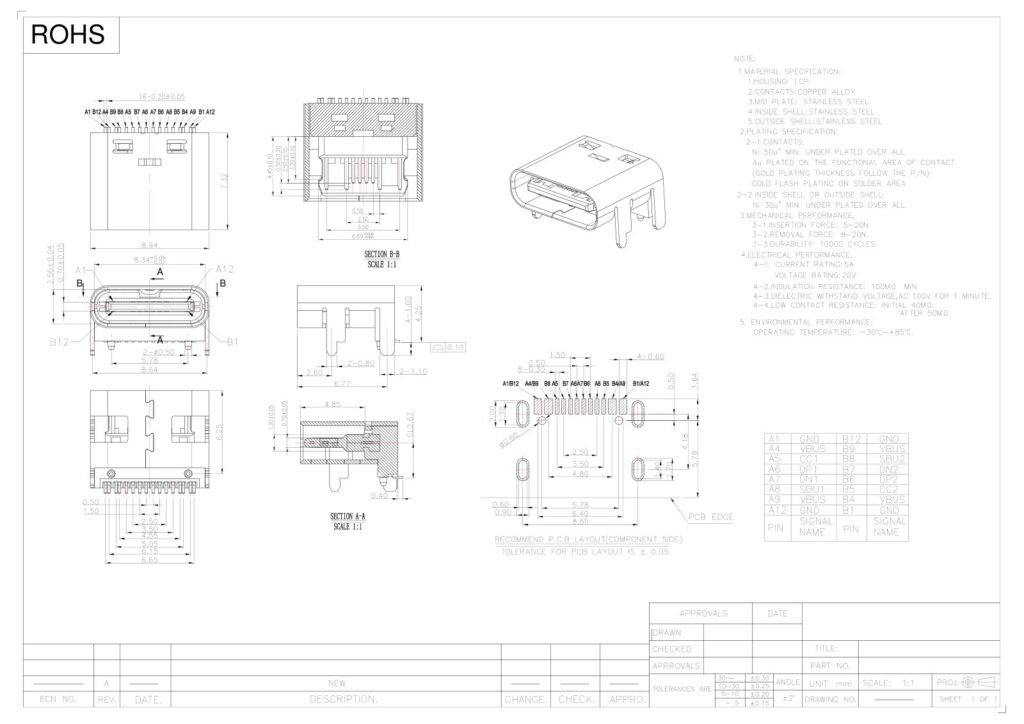

TYPE-C Socket TYPE-C Female Connector 16P / Without Spring Contact & With Spring Contact – GSC-TYP-0116 drawing

GSC-TYP-0116 is a type C 16-contact connector, 8.94×7.32×4.25 mm, 16 pins / without spring contacts & with spring contacts (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type 16P / No shrapnel & With shrapnel
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 227 KB
