TYPE-C socket TYPE-C female connector double-layer, dual interface – GSC-TYP-0114

TYPE-C socket TYPE-C female connector double-layer, dual interface – GSC-TYP-0114

Type C16 PinSMT
Tags:
#16 Pin#PCB#Receptacle#SMT#USB Connector#USB Type-C
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0114 is a type C 16-contact connector, 17.7×13.6×15.4 mm, dual interface, 16-pin (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0114.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeDual Interface/16P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 17.7×13.6×15.4 mm
  • dual interface
  • 16-pin (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

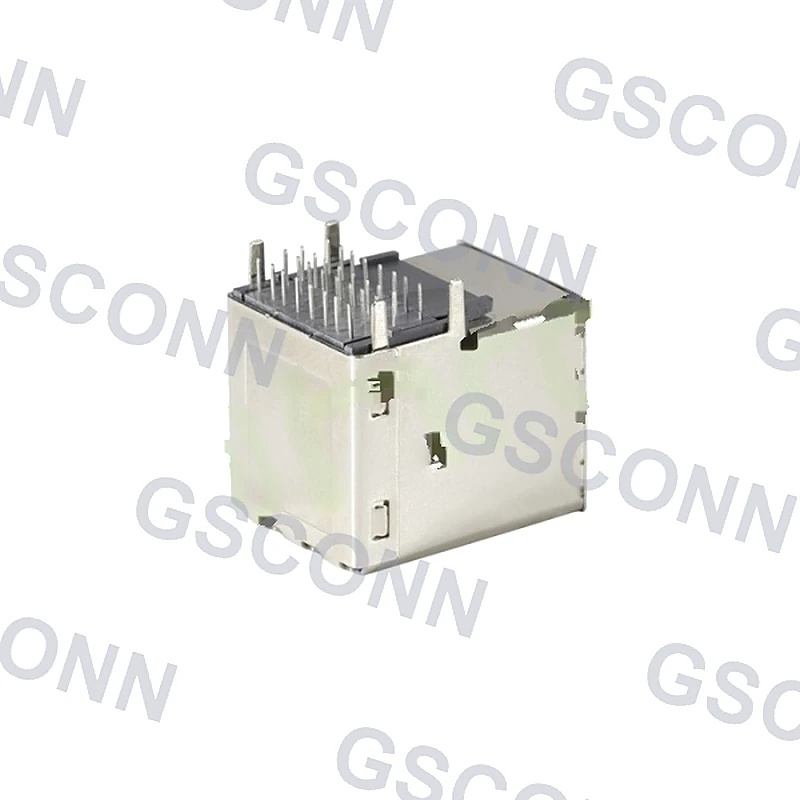

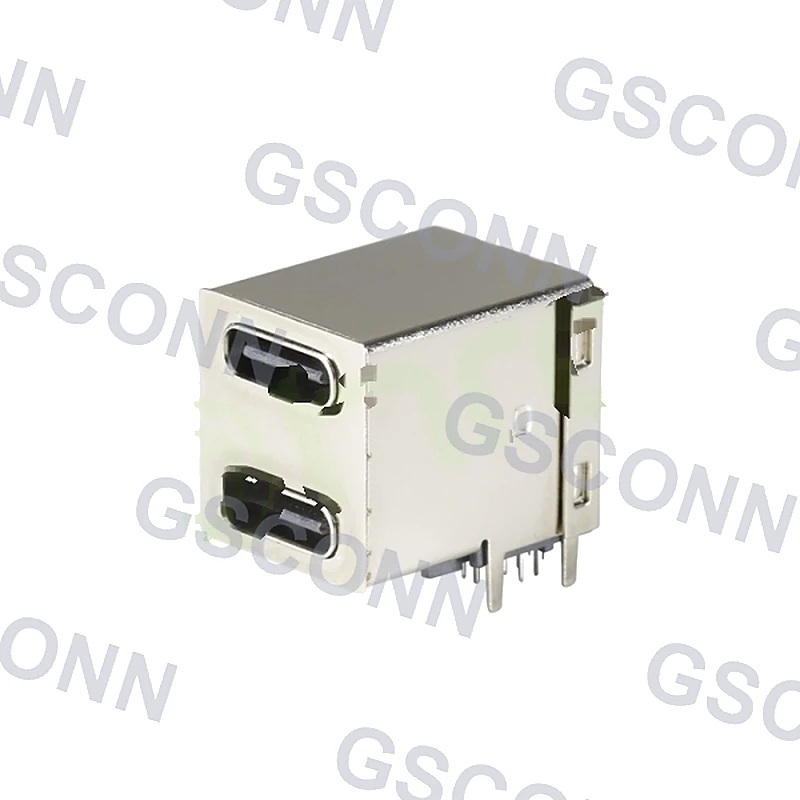

TYPE-C socket TYPE-C female connector double-layer, dual interface – GSC-TYP-0114 drawing

GSC-TYP-0114 is a type C 16-contact connector, 17.7×13.6×15.4 mm, dual interface, 16-pin (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type Dual Interface/16P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 109 KB
