GSC-TYP-0130 is a type C 16-contact connector, 9.47×8×7.76 mm, height-enhanced version, 16 pins (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0130.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeRaised model / 16P
Mating cycles10,000 cycles
Insertion / Removal force0.5–2.0 kgf

Key Features

  • 9.47×8×7.76 mm
  • height‑enhanced version
  • 16 pins (surface-mount type)
  • Type‑C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

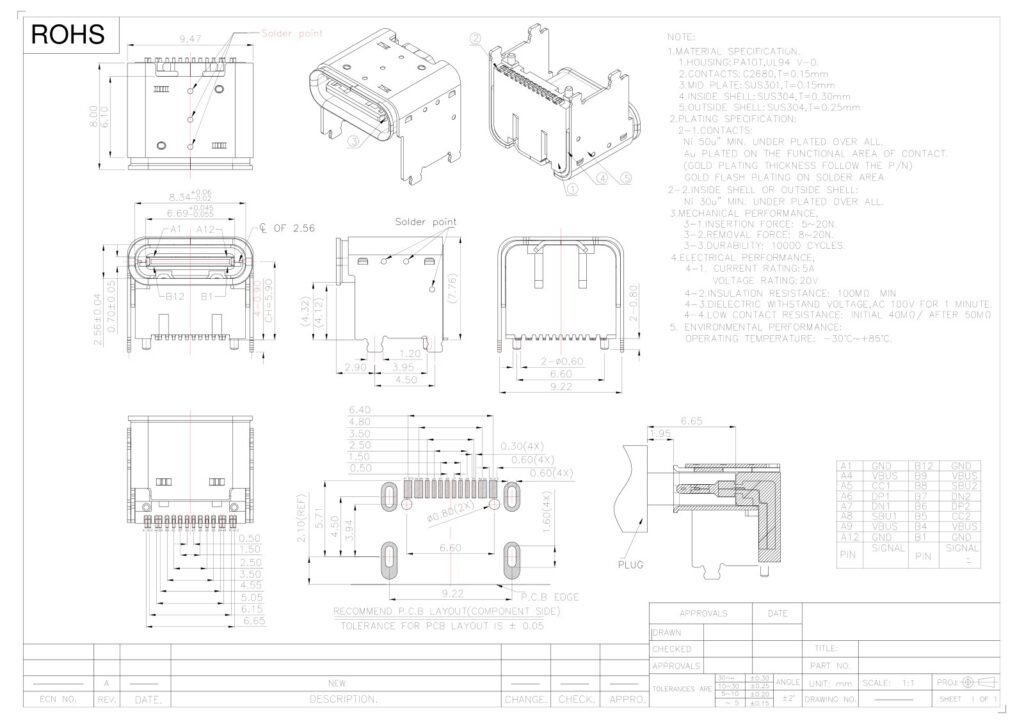

TYPE-C socket TYPE-C female connector raised‑type TYPE-C interface – GSC-TYP-0130 drawing

GSC-TYP-0130 is a type C 16-contact connector, 9.47×8×7.76 mm, height-enhanced version, 16 pins (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type Raised model / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 0.5–2.0 kgf
