GSC-TYP-0108 is a type C 6-contact connector, 8.94×5.0×3.16 mm, short-body, side-entry, 6P (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0108.

Request a Quote → Download Datasheet
Surface MountSMT termination
3,000 CyclesRated mating life
6 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeShort body / 6P
Mating cycles3,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 8.94×5.0×3.16 mm
  • short-body
  • side-entry
  • 6P (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

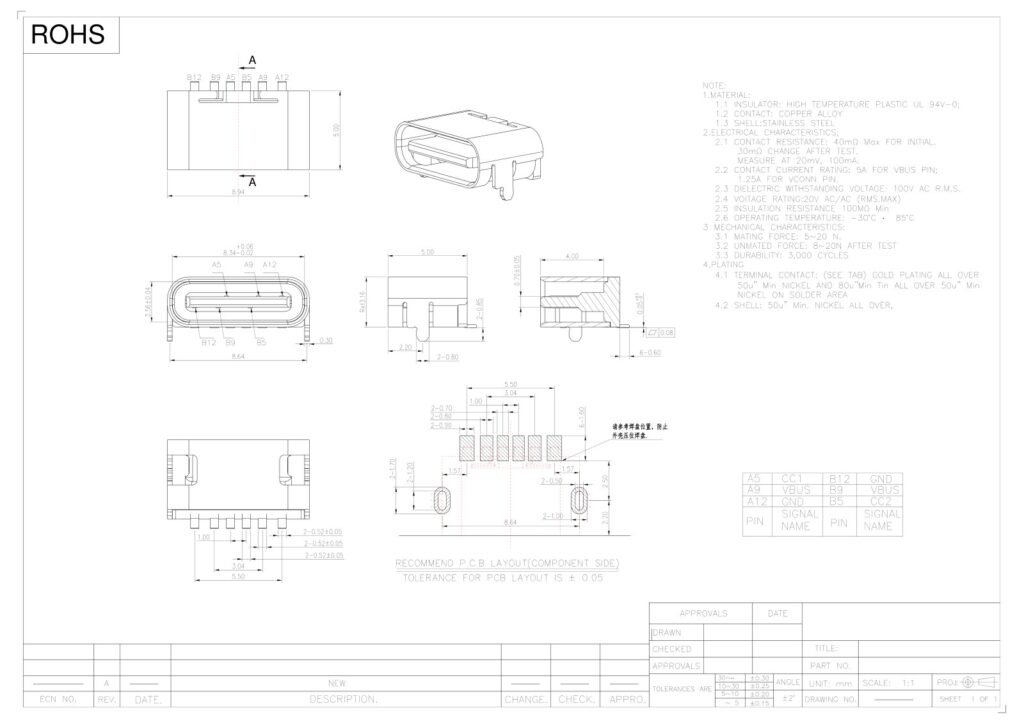

TYPE-C socket TYPE-C female connector short-body side-entry interface – GSC-TYP-0108 drawing

GSC-TYP-0108 is a type C 6-contact connector, 8.94×5.0×3.16 mm, short-body, side-entry, 6P (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type Short body / 6P
Mating cycles 3,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 87 KB
