TYPE-C socket TYPE-C female connector short-body TYPE-C interface – GSC-TYP-0124
Type C6 PinSMTRight Angle
GSC-TYP-0124 is a type C 6-contact connector, 8.94 × 6.8 × 3.16 mm, horizontal, compact form factor, 6P (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0124.
Surface MountSMT termination
3,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Short-body style / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- 8.94 × 6.8 × 3.16 mm
- horizontal
- compact form factor
- 6P (surface-mount type)
- Type-C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

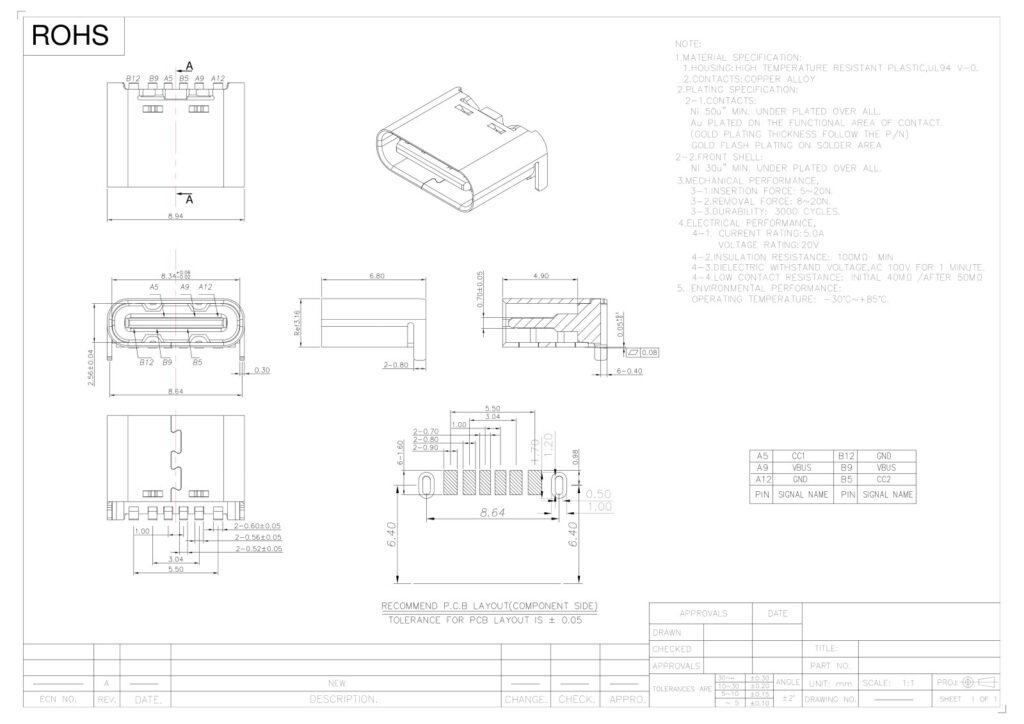

Drawing & Dimensions
GSC-TYP-0124 is a type C 6-contact connector, 8.94 × 6.8 × 3.16 mm, horizontal, compact form factor, 6P (surface-mount type), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Short-body style / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 5–20 N |
