TYPE-C socket TYPE-C female connector side-entry interface – GSC-TYP-0105
Type C6 PinSMT
GSC-TYP-0105 is a type C 6-contact connector, 10 mm × 8.85 mm, side-entry, 6-pin (surface-mount), Type-C connector. GSCONN part GSC-TYP-0105.
Surface MountSMT termination
5,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Long-bodied / 6P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- 10 mm × 8.85 mm
- side‑entry
- 6‑pin (surface-mount)
- Type‑C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

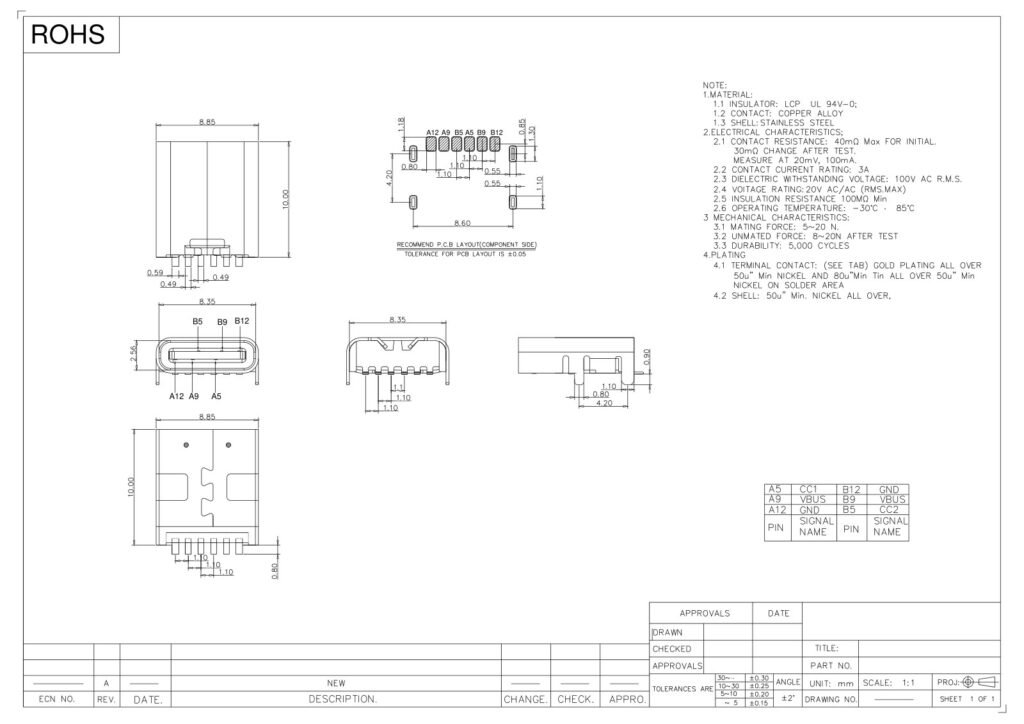

Drawing & Dimensions
GSC-TYP-0105 is a type C 6-contact connector, 10 mm × 8.85 mm, side-entry, 6-pin (surface-mount), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Long-bodied / 6P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 5–20 N |
