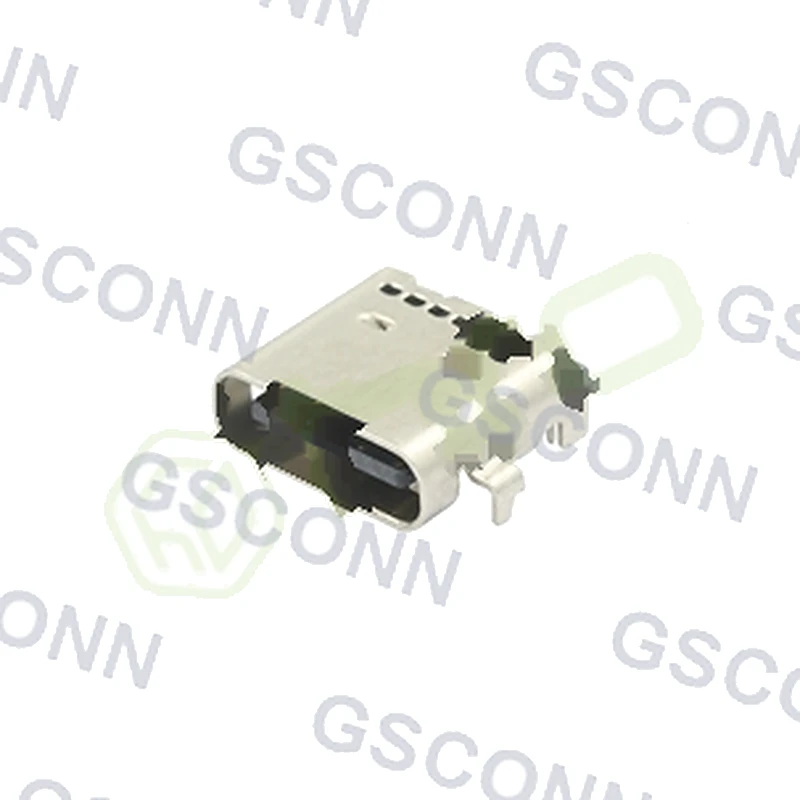

GSC-TYP-0129 is a type C 24-contact connector, 8.94×7.9×3.16 mm, 0.8 mm thick board, 24 pins (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0129.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
24 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
Type0.8mm thick board / 24P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 8.94×7.9×3.16 mm
  • 0.8 mm thick board
  • 24 pins (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

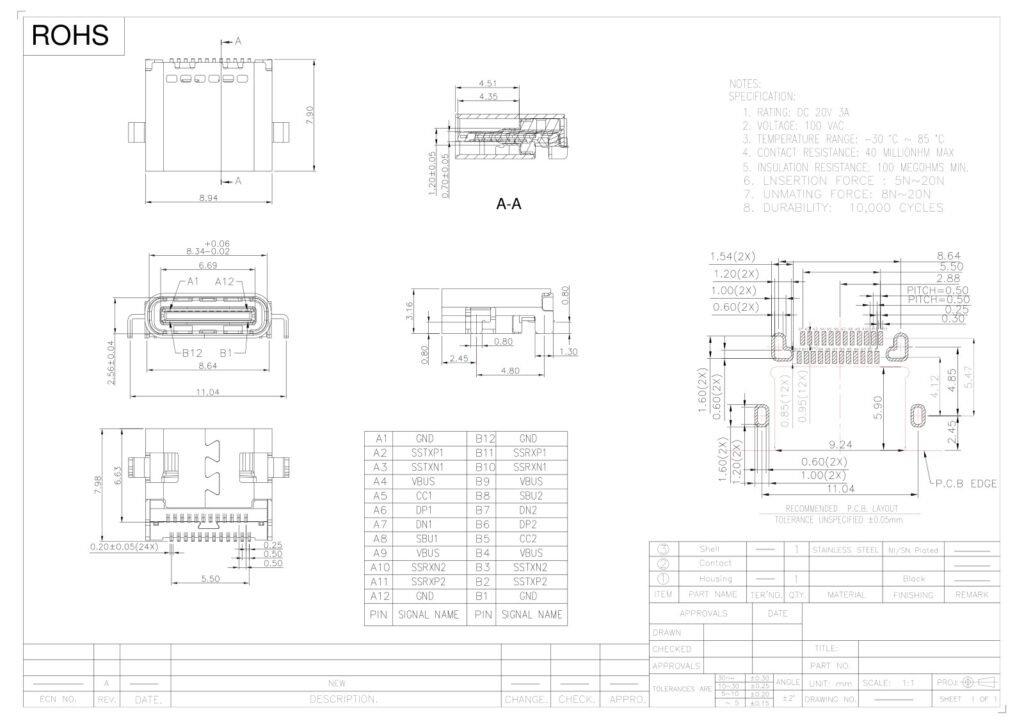

TYPE-C socket TYPE-C female connector through-hole TYPE-C interface – GSC-TYP-0129 drawing

GSC-TYP-0129 is a type C 24-contact connector, 8.94×7.9×3.16 mm, 0.8 mm thick board, 24 pins (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type 0.8mm thick board / 24P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N
