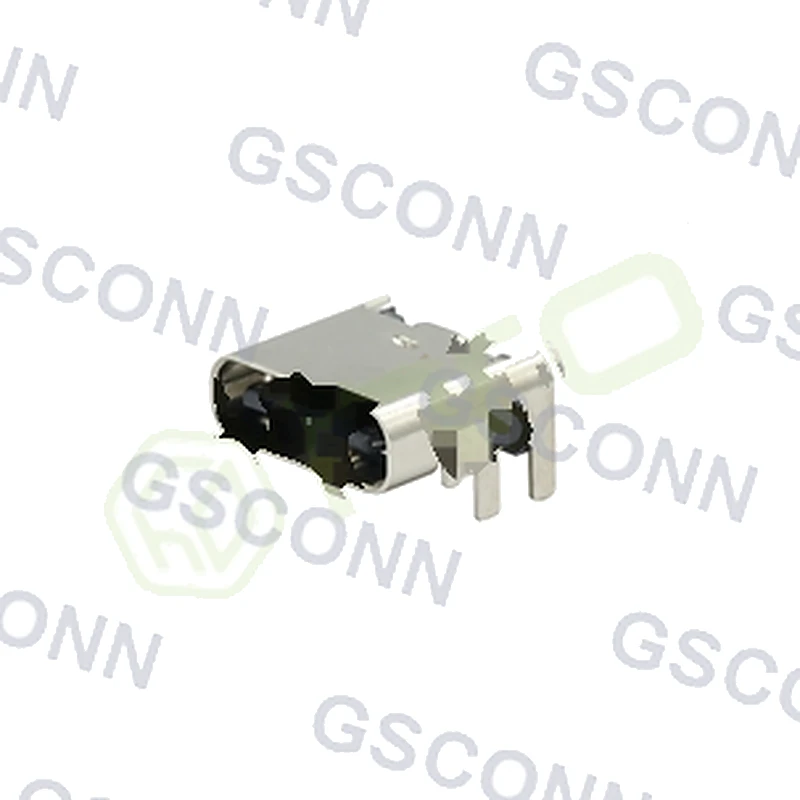

GSC-TYP-0117 is a type C 16-contact connector, 7.6×8.54×3.16 mm, 0.3 mm height increase, 16 pins (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0117.

Request a Quote → Download Datasheet
Surface MountSMT termination
10,000 CyclesRated mating life
16 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
TypeHeightened by 0.3 mm / 16P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 7.6×8.54×3.16 mm
  • 0.3 mm height increase
  • 16 pins (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

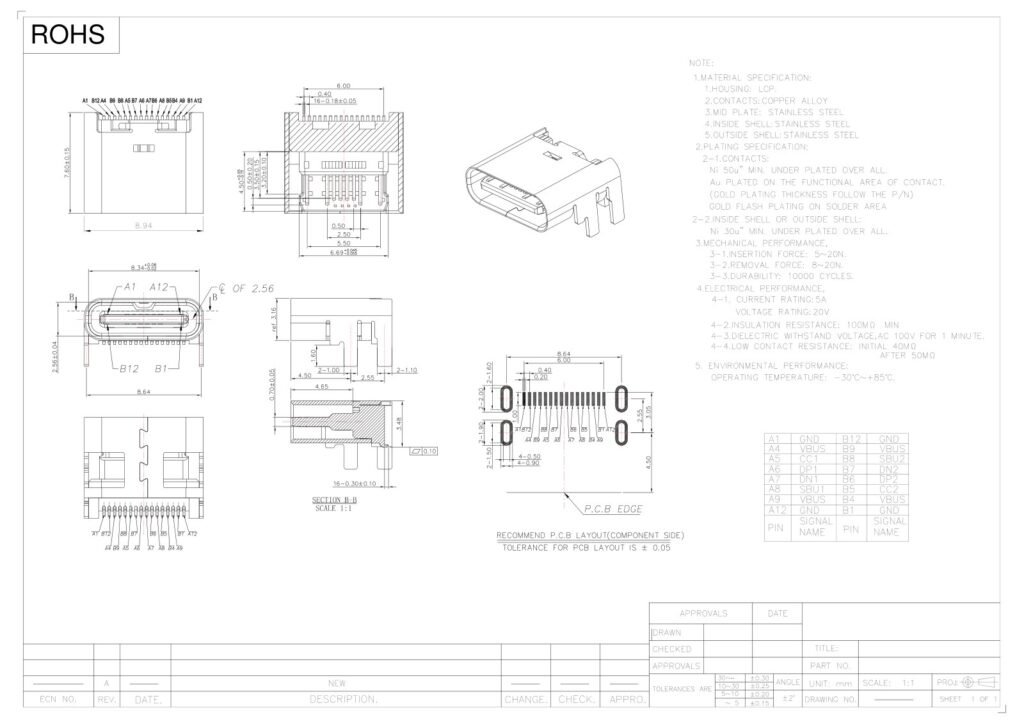

TYPE-C socket TYPE-C female connector TYPE-C 16-pin interface – GSC-TYP-0117 drawing

GSC-TYP-0117 is a type C 16-contact connector, 7.6×8.54×3.16 mm, 0.3 mm height increase, 16 pins (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type Heightened by 0.3 mm / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 126 KB
