TYPE-C socket TYPE-C female connector TYPE-C 24-pin interface – GSC-TYP-0122
Type C24 PinSMTRight Angle
GSC-TYP-0122 is a type C connector, 9.2×9.34×3.31 mm, horizontal, 24 pins (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0122.
Surface MountSMT termination
10,000 CyclesRated mating life
24 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Cover style / 24 pages |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- 9.2×9.34×3.31 mm
- horizontal
- 24 pins (surface-mount type)
- Type-C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

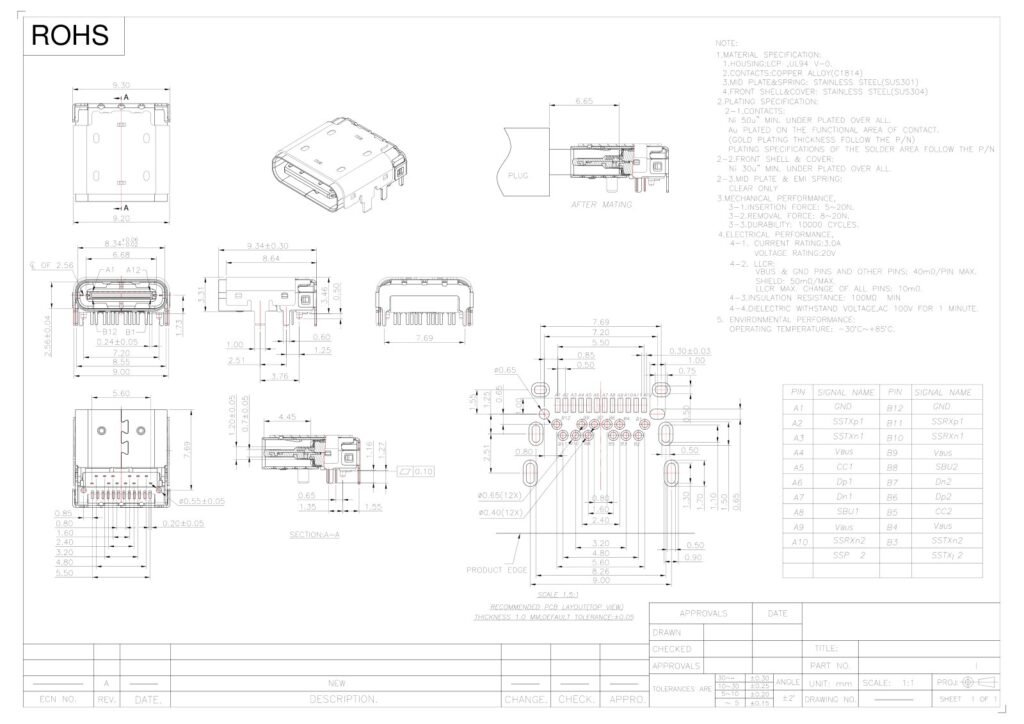

Drawing & Dimensions
GSC-TYP-0122 is a type C connector, 9.2×9.34×3.31 mm, horizontal, 24 pins (surface-mount type), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Cover style / 24 pages |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
