TYPE-C socket TYPE-C female connector TYPE-C interface – GSC-TYP-0126
Type C24 PinSMT
GSC-TYP-0126 is a type C 24-contact connector, 8.94×7.9 mm, universal type, 24-pin (surface-mount), Type-C connector. GSCONN part GSC-TYP-0126.
Surface MountSMT termination
10,000 CyclesRated mating life
24 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Universal / 24P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- 8.94×7.9 mm
- universal type
- 24-pin (surface-mount)
- Type-C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

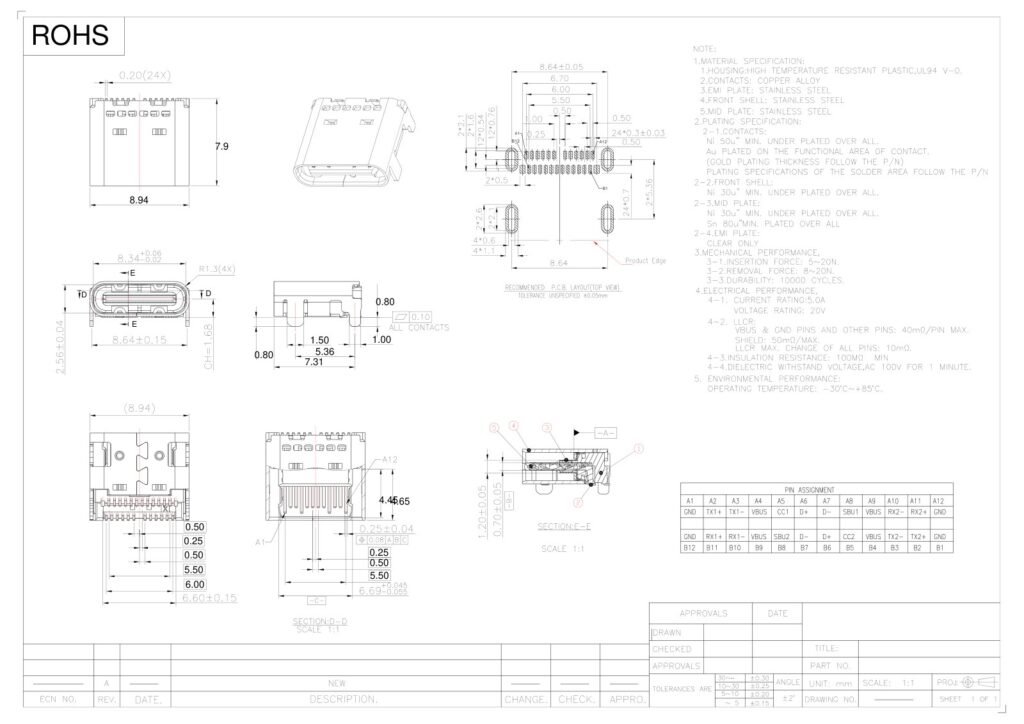

Drawing & Dimensions
GSC-TYP-0126 is a type C 24-contact connector, 8.94×7.9 mm, universal type, 24-pin (surface-mount), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Universal / 24P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
