TYPE-C socket TYPE-C female connector TYPE-C interface – GSC-TYP-0127
Type C6 PinSMTRight Angle
GSC-TYP-0127 is a type C 6-contact connector, horizontal housing, 6.5 & 6.8 mm, full-surface-mount type, 6P (surface-mount), Type-C connector. GSCONN part GSC-TYP-0127.
Surface MountSMT termination
3,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Full-coverage / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- Horizontal housing
- 6.5 & 6.8 mm
- full‑surface‑mount type
- 6P (surface‑mount)
- Type‑C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

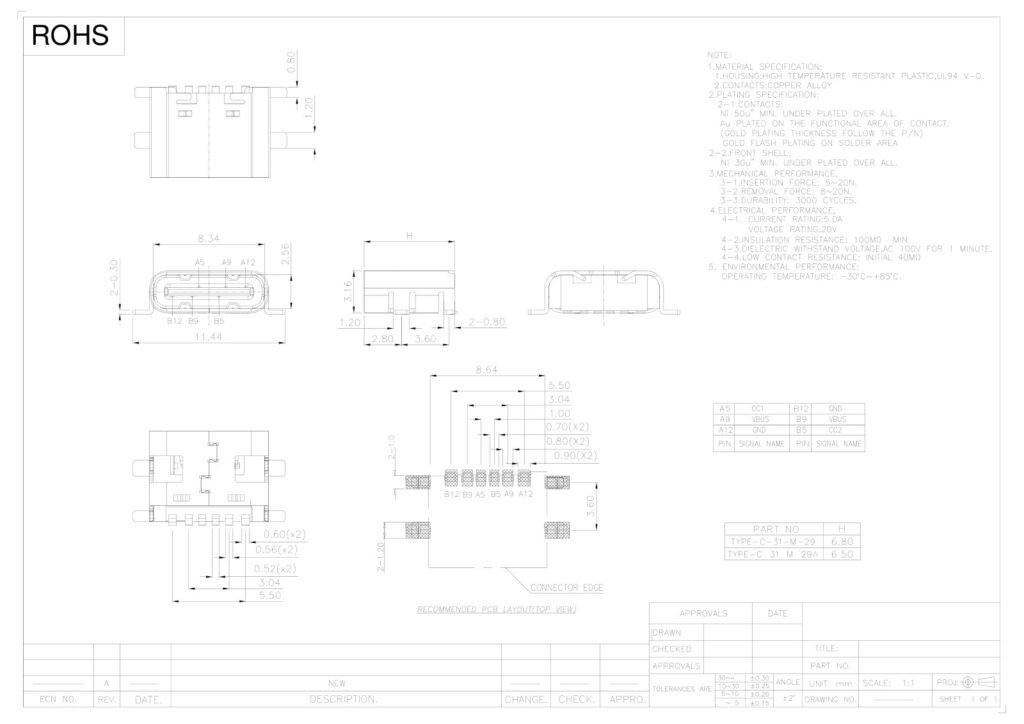

Drawing & Dimensions
GSC-TYP-0127 is a type C 6-contact connector, horizontal housing, 6.5 & 6.8 mm, full-surface-mount type, 6P (surface-mount), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Full-coverage / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 5–20 N |
