GSC-TYP-0128 is a type C 6-contact connector, 11.15×6.8×6.8 mm, 1.6 mm thick PCB, 6P (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0128.

Request a Quote → Download Datasheet
Surface MountSMT termination
5,000 CyclesRated mating life
6 PinContact count

Technical Specifications

SeriesTYPE-C JACKES
Type1.6mm countersunk / 6P
Mating cycles5,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 11.15×6.8×6.8 mm
  • 1.6 mm thick PCB
  • 6P (surface-mount type)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

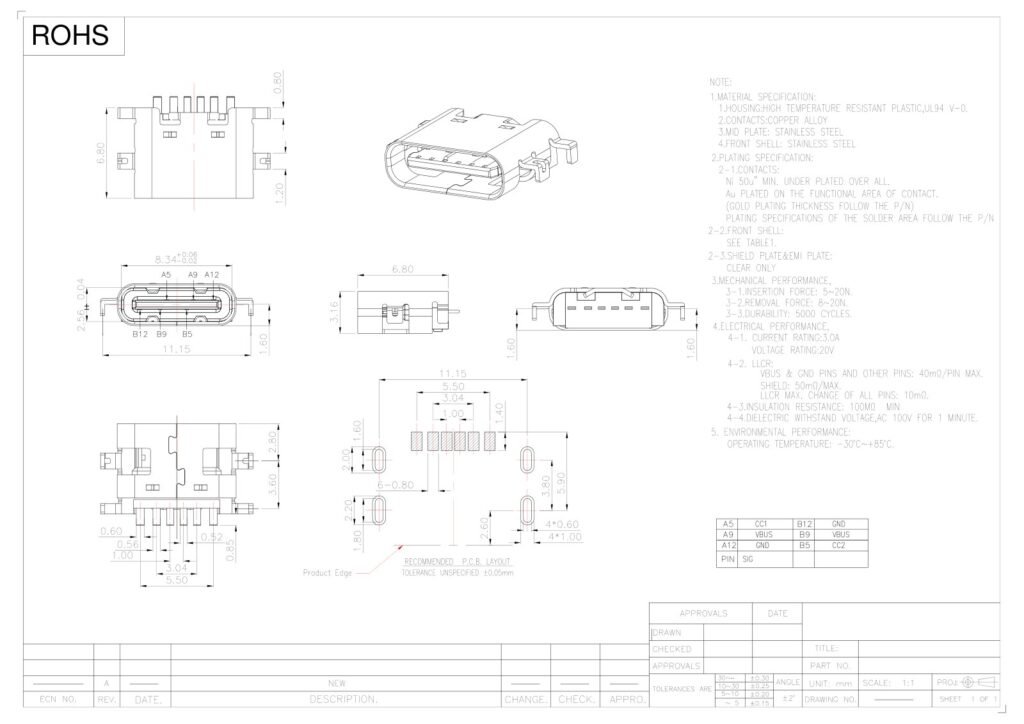

TYPE-C socket TYPE-C female connector TYPE-C interface – GSC-TYP-0128 drawing

GSC-TYP-0128 is a type C 6-contact connector, 11.15×6.8×6.8 mm, 1.6 mm thick PCB, 6P (surface-mount type), Type-C connector.

Series TYPE-C JACKES
Type 1.6mm countersunk / 6P
Mating cycles 5,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 235 KB
