TYPE-C socket TYPE-C female connector TYPE-C interface – GSC-TYP-0176
Type C6 PinSMTVerticalWaterproof
GSC-TYP-0176 is a type C 6-contact connector, 10.04×4.06×6.15 mm, vertical, waterproof to IPX7, 6P (surface-mount type), TYPE-C connector. GSCONN part GSC-TYP-0176.
WaterproofRated waterproof construction
Surface MountSMT termination
10,000 CyclesRated mating life
Technical Specifications
| Series | TYPE-C JACKES |
| Type | Vertical Waterproof / 6P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
Key Features
- 10.04×4.06×6.15 mm
- vertical
- waterproof to IPX7
- 6P (surface-mount type)
- TYPE‑C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

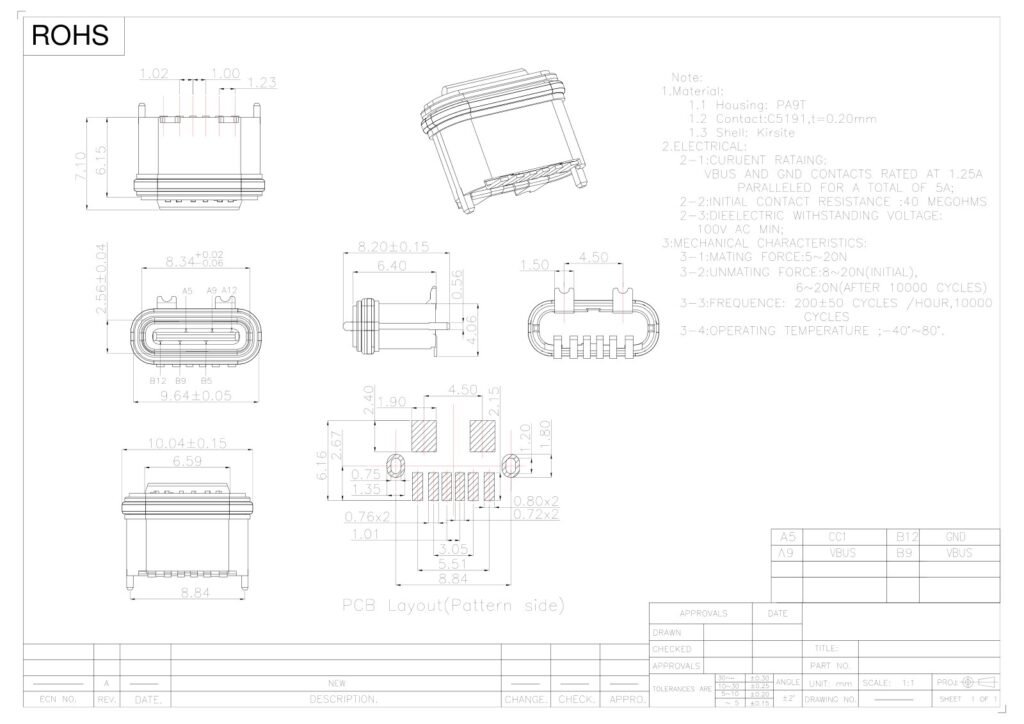

Drawing & Dimensions
GSC-TYP-0176 is a type C 6-contact connector, 10.04×4.06×6.15 mm, vertical, waterproof to IPX7, 6P (surface-mount type), TYPE-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | Vertical Waterproof / 6P |
| Mating cycles | 10,000 cycles |
| Insertion / Removal force | 5–20 N |
