TYPE-C Socket Vertical TYPE-C Female Connector 6-Pin Interface – GSC-TYP-0100
Type C6 PinSMTRight Angle
GSC-TYP-0100 is a type C 6-contact connector, horizontal 6P, L=5.0 & 5.5 mm (surface-mount type), Type-C connector. GSCONN part GSC-TYP-0100.
Surface MountSMT termination
3,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | TYPE-C JACKES |
| Type | L=5.0&5.5mm / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 0.5–2.0 kgf |
Key Features
- Horizontal 6P
- L=5.0 & 5.5 mm (surface-mount type)
- Type-C connector
Applications
- Consumer electronics
- Docking stations and USB hubs
- Charging and power delivery devices
- Industrial HMI and control panels

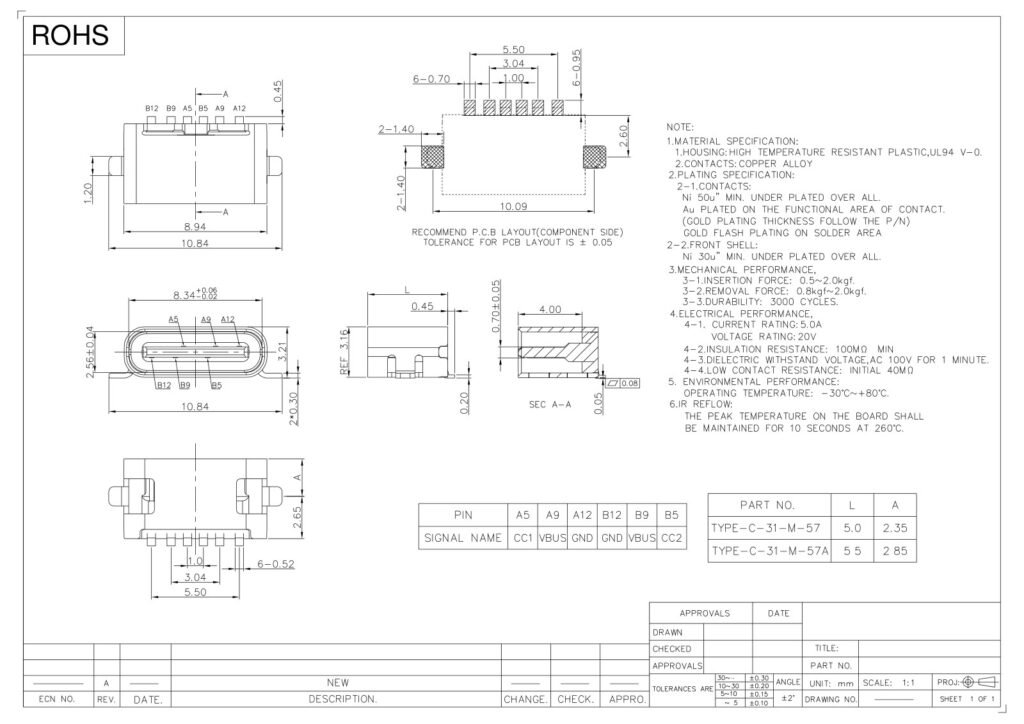

Drawing & Dimensions
GSC-TYP-0100 is a type C 6-contact connector, horizontal 6P, L=5.0 & 5.5 mm (surface-mount type), Type-C connector.
| Series | TYPE-C JACKES |
|---|---|
| Type | L=5.0&5.5mm / 6P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 0.5–2.0 kgf |
