TYPE-C socket waterproof TYPE-C female connector 24P TYPE-C interface – GSC-TYP-0150

TYPE-C socket waterproof TYPE-C female connector 24P TYPE-C interface – GSC-TYP-0150

Type C24 PinSMTWaterproof
Tags:
#24 Pin#PCB#Receptacle#SMT#USB Connector#USB Type-C#Waterproof
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0150 is a type C 24-contact connector, 10.3×8.35×5.35 mm, waterproof to IPX7, 24-pin (surface-mount type) Type-C connector. GSCONN part GSC-TYP-0150.

Request a Quote → Download Datasheet
WaterproofRated waterproof construction
Surface MountSMT termination
10,000 CyclesRated mating life

Technical Specifications

SeriesTYPE-C JACKES
TypeWaterproof rating IPX7 / 24P
Mating cycles10,000 cycles
Insertion / Removal force0.5–2.0 kgf

Key Features

  • 10.3×8.35×5.35 mm
  • waterproof to IPX7
  • 24-pin (surface-mount type) Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels
Drawing & Dimensions

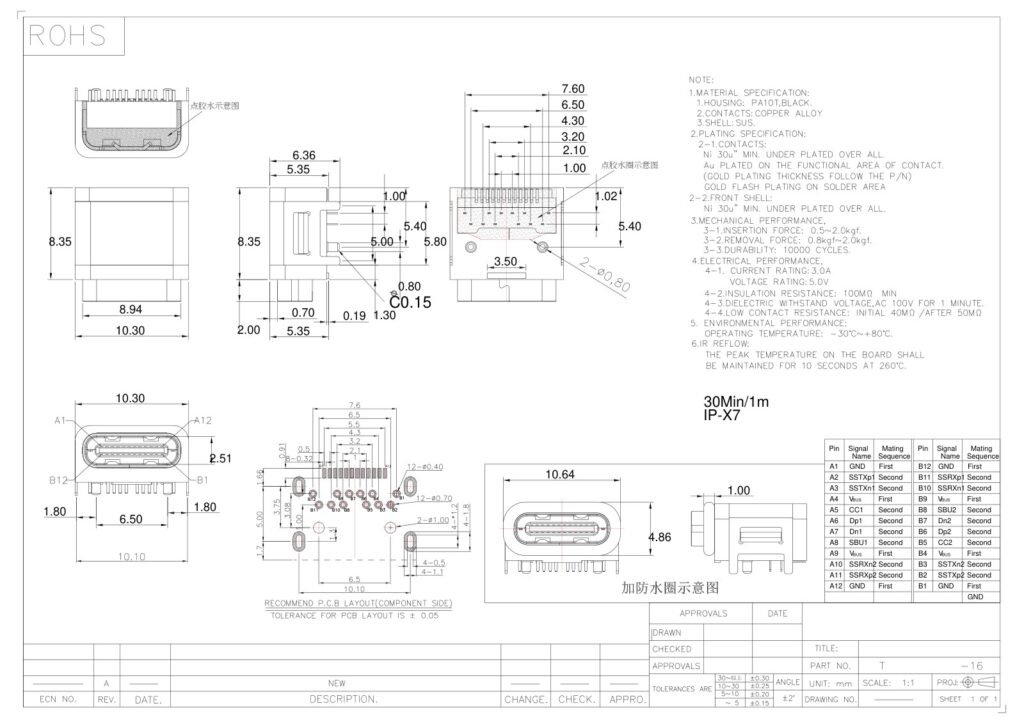

TYPE-C socket waterproof TYPE-C female connector 24P TYPE-C interface – GSC-TYP-0150 drawing

GSC-TYP-0150 is a type C 24-contact connector, 10.3×8.35×5.35 mm, waterproof to IPX7, 24-pin (surface-mount type) Type-C connector.

Series TYPE-C JACKES
Type Waterproof rating IPX7 / 24P
Mating cycles 10,000 cycles
Insertion / Removal force 0.5–2.0 kgf

Downloads

Technical DrawingPDF · 249 KB
