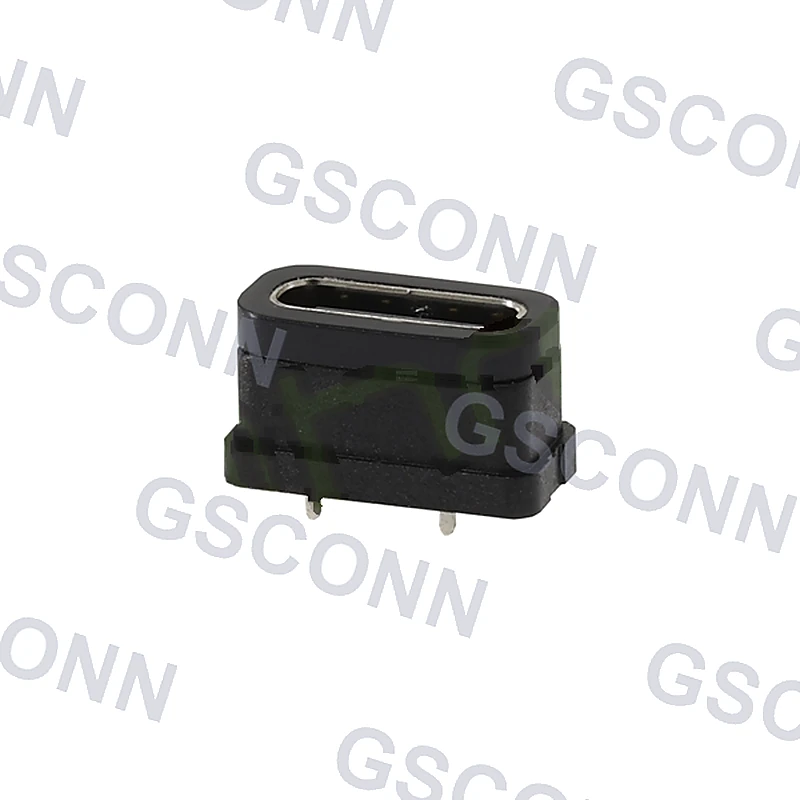

GSC-TYP-0157 is a type C 16-contact connector, 10.55×5.60×6.40 mm, vertical, waterproof (IPX5), 16-pin surface-mount TYPE-C connector. GSCONN part GSC-TYP-0157.

Request a Quote → Download Datasheet
WaterproofRated waterproof construction
Surface MountSMT termination
10,000 CyclesRated mating life

Technical Specifications

SeriesTYPE-C JACKES
TypeVertical Waterproof Type / 16P
Mating cycles10,000 cycles
Insertion / Removal force3–20 N

Key Features

  • 10.55×5.60×6.40 mm
  • vertical
  • waterproof (IPX5)
  • 16-pin surface-mount TYPE‑C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels

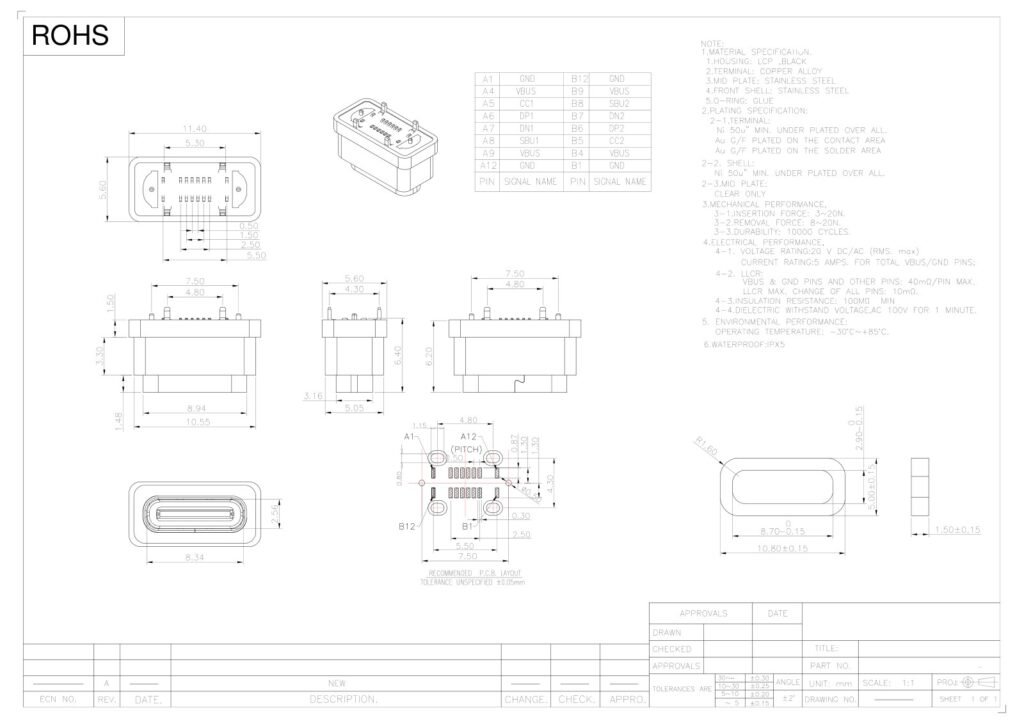

Drawing & Dimensions
TYPE-C socket waterproof TYPE-C female connector waterproof TYPE-C interface – GSC-TYP-0157 drawing

GSC-TYP-0157 is a type C 16-contact connector, 10.55×5.60×6.40 mm, vertical, waterproof (IPX5), 16-pin surface-mount TYPE-C connector.

Series TYPE-C JACKES
Type Vertical Waterproof Type / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 3–20 N
