Type C16 PinSMTVerticalWaterproof
Tags:
#16 Pin#PCB#Receptacle#SMT#USB Connector#USB Type-C#Vertical#Waterproof
Share:LinkedInFacebookXWhatsAppEmail

GSC-TYP-0170 is a type C 16-contact connector, 9.96×4.2×5.75 mm, vertical, waterproof to IPX6, 16-pin (surface-mount), Type-C connector. GSCONN part GSC-TYP-0170.

Request a Quote → Download Datasheet
WaterproofRated waterproof construction
Surface MountSMT termination
10,000 CyclesRated mating life

Technical Specifications

SeriesTYPE-C JACKES
TypeVertical Waterproof Type / 16P
Mating cycles10,000 cycles
Insertion / Removal force5–20 N

Key Features

  • 9.96×4.2×5.75 mm
  • vertical
  • waterproof to IPX6
  • 16-pin (surface-mount)
  • Type-C connector

Applications

  • Consumer electronics
  • Docking stations and USB hubs
  • Charging and power delivery devices
  • Industrial HMI and control panels

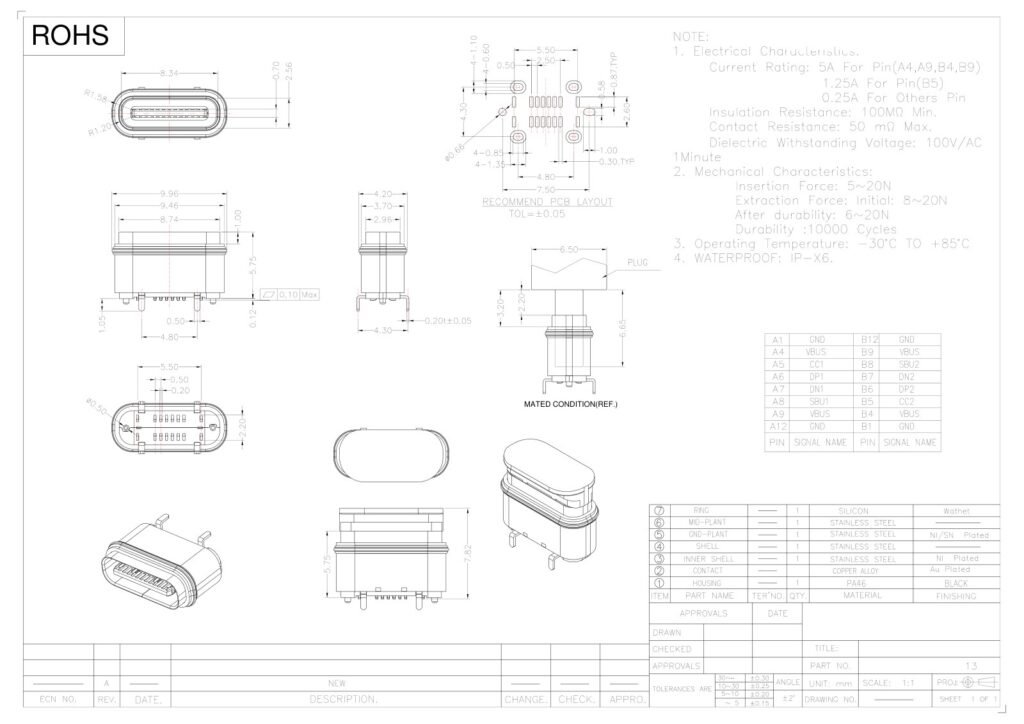

Drawing & Dimensions
TYPE-C socket waterproof TYPE-C female connector waterproof TYPE-C interface – GSC-TYP-0170 drawing

GSC-TYP-0170 is a type C 16-contact connector, 9.96×4.2×5.75 mm, vertical, waterproof to IPX6, 16-pin (surface-mount), Type-C connector.

Series TYPE-C JACKES
Type Vertical Waterproof Type / 16P
Mating cycles 10,000 cycles
Insertion / Removal force 5–20 N

Downloads

Technical DrawingPDF · 87 KB
