Technical Specifications
| Connector style | Type C |
| Interface | C |
| USB version | 3.0 |
| Gender | female |
| Number of contacts | 6PIN |
| PCB mount type | TOP-mount conn |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 6 contacts
- Type C interface
- USB 3.0
- female connector
- TOP-mount conn termination
- LCP housing
- High conductivity copper contact system
- SUS304 shell
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

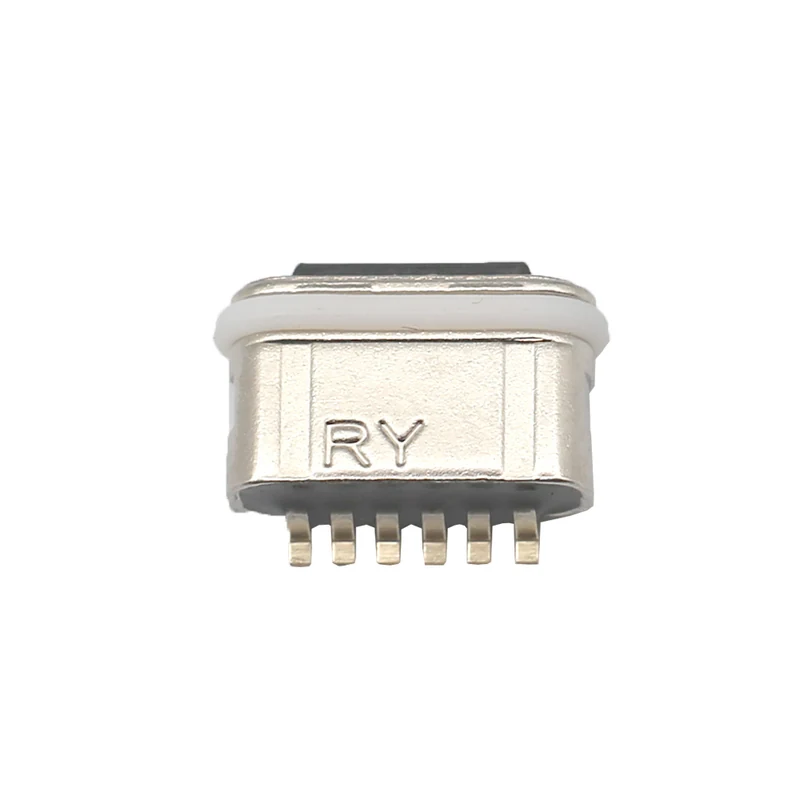

GSC-TYP-0032 is a 6-contact Type C female connector, using TOP-mount conn mounting. The housing is LCP; the contact system is High conductivity copper; the shell is SUS304. Electrically it is rated 3A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| USB version | 3.0 |
| Gender | female |
| Number of contacts | 6PIN |
| PCB mount type | TOP-mount conn |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
