What is the operating temperature range?

Operates from -55°C to +85°C.

Is this connector waterproof?

No, this connector is not rated for dust or water ingress protection.

What data speed does it support?

Supports up to 480Mbps data transfer.

What certifications does this product have?

Certified CE, RoHS, REACH for international compliance.

USB 2.0 Double-Layer 90 Degree 4-Pin Connector – C023546

Name: USB 2.0 Double-Layer 90 Degree Connector - C023546 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#90 Degree #Double-Layer #USB 2.0 #USB Connector

Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board integration....

Request a Quote →

2.0 Standard interfaceUSB 2.0 baseline throughput

Double-layer PCB designTwo-row PCB pin footprint

90° exit angleRight-angle cable exit

480Mbps full-speed signalingHigh-density PCB layout

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	4-Pin
Rated Current	1.5A
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Phosphor Bronze, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Standard connector supporting standard 2.0 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Robust mechanical structure for reliable mating-cycle durability
Suitable for high-vibration installations including marine and rail

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

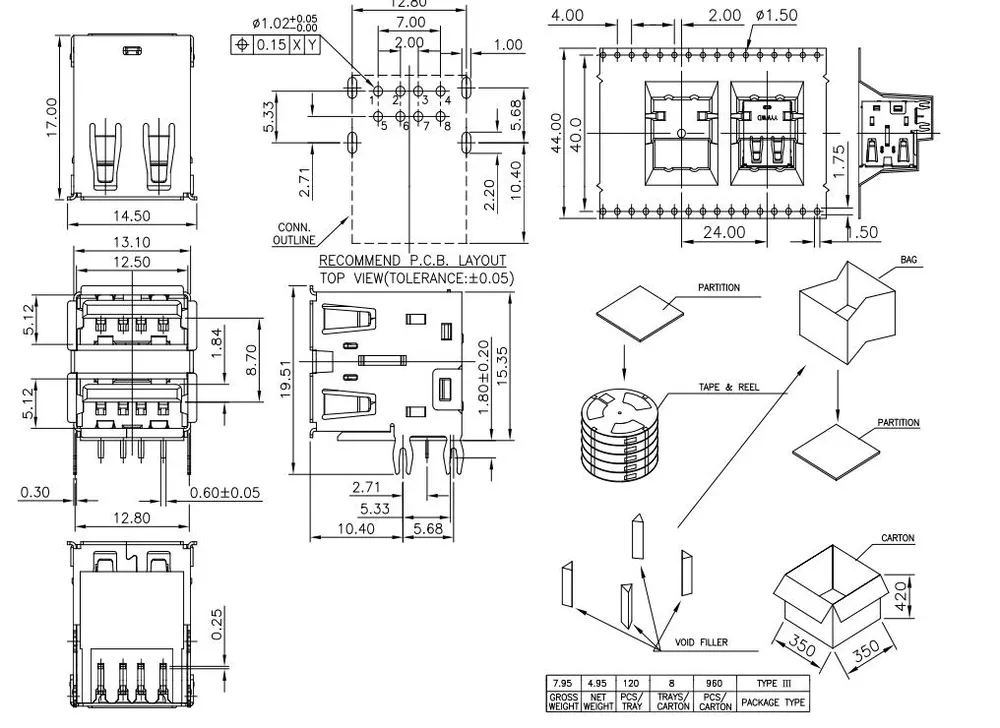

Product Drawing

Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
