USB 2.0 Single-Layer 180 Degree Locking Connector – C040141

Name: USB 2.0 Single-Layer 180 Degree Connector - C040141 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#180 Degree #Locking #Single-Layer #USB 2.0 #USB Connector

Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The...

Request a Quote →

2.0 Standard interfaceUSB 2.0 baseline throughput

Single-layer PCB designSingle-row straight pin layout

180° exit angleVertical cable exit

480Mbps full-speed signalingCompact board footprint

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	Standard
Rated Current	1.5A
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Phosphor Bronze, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	BRASS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Standard connector supporting standard 2.0 data protocols
Single-layer PCB design with 180° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Locking contact geometry optimized for specific mating and retention requirements
Compatible with industrial robot and AGV system interconnect
Suitable for test equipment, instrumentation, and laboratory measurement

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

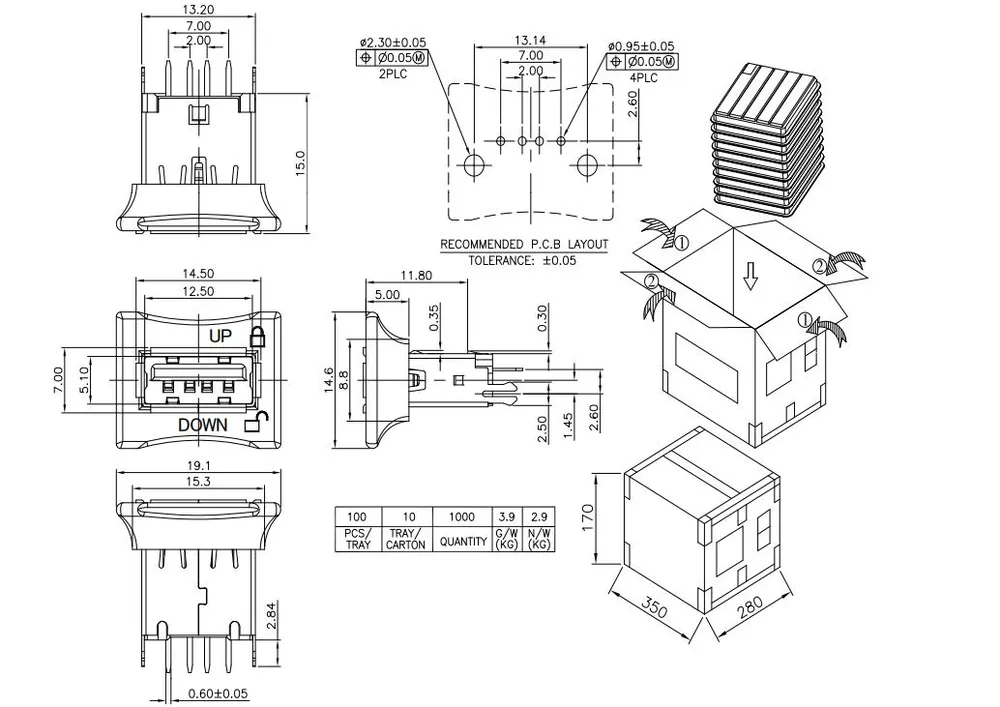

Product Drawing

Precision-tooled for 2.0 data integrity, this 2.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Compatible with hand-soldering, wave-soldering, and reflow-soldering processes for flexible production deployment. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
