USB 2.0 Type-B 180 Degree Bent-Pin Female Connector – C071199

Name: USB 2.0 Single-Layer 180 Degree Type-B - C071199 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#180 Degree #Bent-Pin #USB 2.0 #USB Connector #USB Type-B

Precision-tooled for 2.0 data integrity, this 2.0 Type-B connector features standard board-mount construction with vertical cable exit for in-line board placement. The standard...

Request a Quote →

2.0 Type-B interfaceUSB 2.0 baseline throughput

Single-layer PCB designStandard pin configuration

180° exit angleVertical cable exit

480Mbps full-speed signalingHigh-density PCB layout

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Type-B
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	PBT本色, UL94-V0
Shell Material	SPCC, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Type-B connector supporting standard 2.0 data protocols
Single-layer PCB design with 180° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Bent-Pin contact geometry optimized for specific mating and retention requirements
Compatible with selective wave soldering for mixed-technology PCB assemblies
Suitable for medical device and clinical equipment data interfaces

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

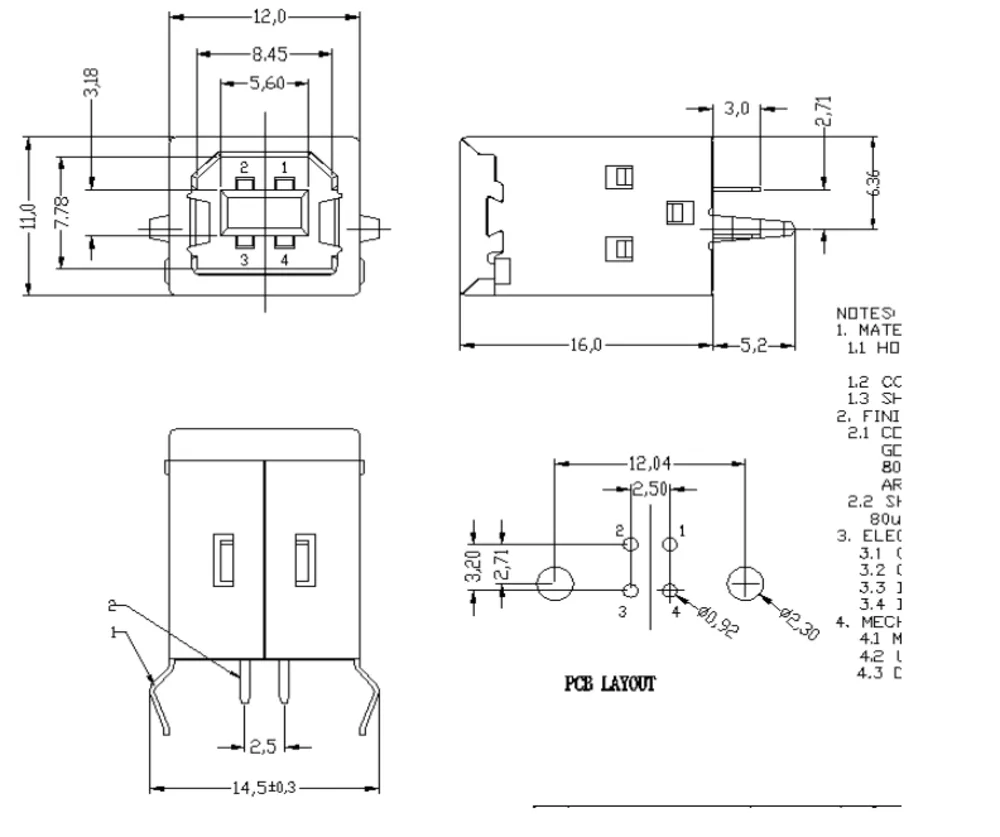

Product Drawing

Precision-tooled for 2.0 data integrity, this 2.0 Type-B connector features standard board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. Operating temperature range supports -40°C to +85°C industrial deployment across harsh environments. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
