USB 2.0 Type-B 90 Degree Bent-Pin Female Connector – L000654

Name: USB 2.0 Single-Layer 90 Degree Type-B - L000654 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#90 Degree #Bent-Pin #USB 2.0 #USB Connector #USB Type-B

Manufactured to USB-IF compliance standards, this 2.0 Type-B connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The...

Request a Quote →

2.0 Type-B interface480Mbps full-speed transfer

Single-layer PCB designStandard pin configuration

90° exit angleHorizontal cable routing

Plug-and-play USB 2.0 standardStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Type-B
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	PBT本色, UL94-V0
Shell Material	SPCC, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Type-B connector supporting standard 2.0 data protocols
Single-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Bent-Pin contact geometry optimized for specific mating and retention requirements
Suitable for test equipment, instrumentation, and laboratory measurement
Compatible with portable instruments, scanners, and mobile data terminals

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

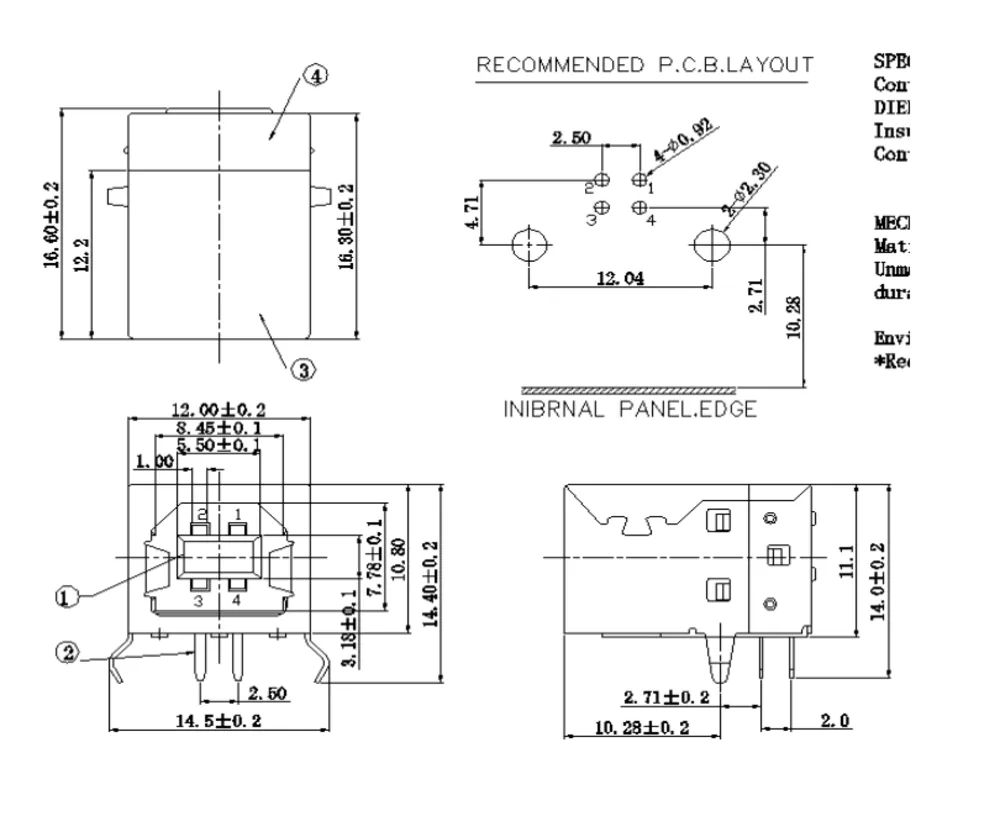

Product Drawing

Manufactured to USB-IF compliance standards, this 2.0 Type-B connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
