Technical Specifications
| Connector style | USB |
| Interface | A |
| USB version | 3.0 |
| Insulator Color | Blue |
| Gender | female |
| Number of contacts | 9 |
| mount type | Surface mount |
| Entry type | Side |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS |
| Temperature | -40°C to +85°C |
| Contact Current Rating | 1.5A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 100 Megohms Min |
| Dielectric Voltage | 1000V AC/Minute |
Key Features
- 9 contacts
- USB interface
- USB 3.0
- female connector
- Surface mount termination
- Side entry
- LCP housing
- High conductivity copper contact system
Applications
- PC motherboards and peripherals
- Consumer electronics
- Industrial control equipment
- Test and measurement instruments
Drawing & Dimensions

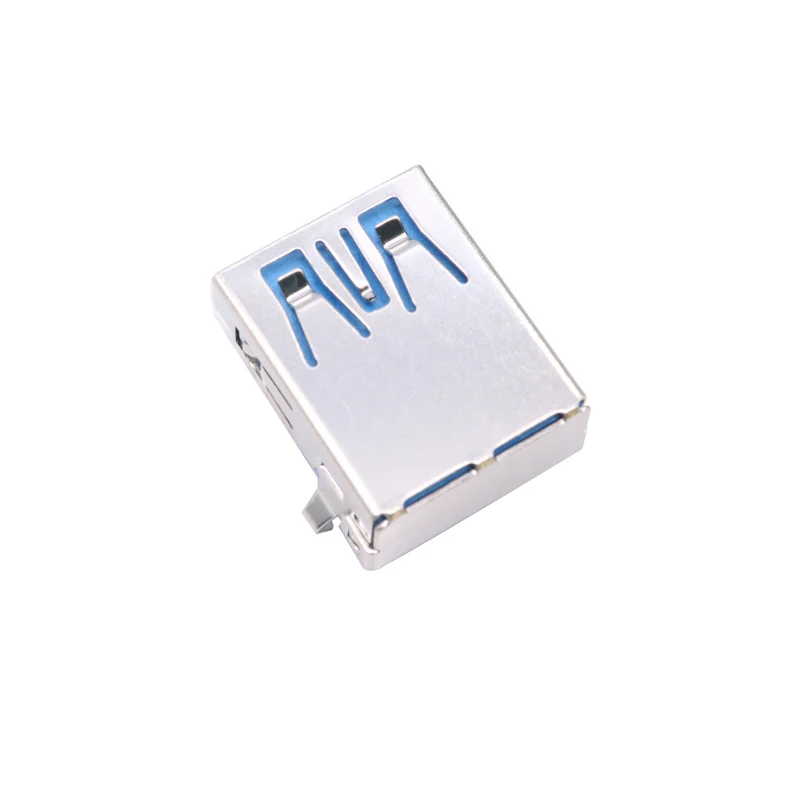

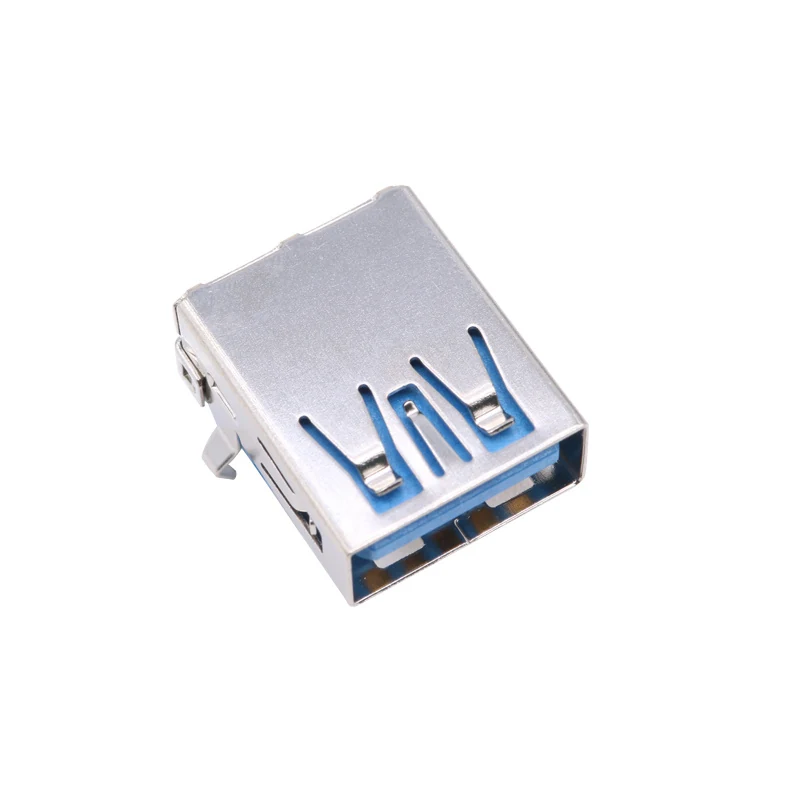

GSC-USA-0021 is a 9-contact USB female connector, using Surface mount mounting with Side entry. The housing is LCP; the contact system is High conductivity copper; the shell is SUS. Electrically it is rated 1.5A, with a withstanding voltage of 1000V AC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers insulation resistance 100 Megohms Min, contact resistance 30mΩ Max. Typical applications include PC motherboards and peripherals, Consumer electronics, Industrial control equipment, and Test and measurement instruments.
| Connector style | USB |
| Interface | A |
| USB version | 3.0 |
| Insulator Color | Blue |
| Gender | female |
| Number of contacts | 9 |
| mount type | Surface mount |
| Entry type | Side |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS |
| Temperature | -40°C to +85°C |
| Contact Current Rating | 1.5A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 100 Megohms Min |
| Dielectric Voltage | 1000V AC/Minute |
