What is the operating temperature range?

Operates from -55°C to +85°C.

Is this connector waterproof?

No, this connector is not rated for dust or water ingress protection.

What data speed does it support?

Supports up to 480Mbps data transfer.

What certifications does this product have?

Certified CE, RoHS, REACH for international compliance.

USB 2.0 Double-Layer 90 Degree Connector – C023069

Name: USB 2.0 Double-Layer 90 Degree Connector - C023069 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#90 Degree #Double-Layer #USB 3.0 #USB Connector

Manufactured to USB-IF compliance standards, this 2.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board...

Request a Quote →

2.0 Standard interface480Mbps high-speed differential pairs

Double-layer PCB designDouble-row contact array

90° exit angleHorizontal cable routing

USB 2.0 High-Speed compliantStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.5A
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Phosphor Bronze, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	BRASS/SUS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Standard connector supporting standard 2.0 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Suitable for test equipment, instrumentation, and laboratory measurement
Compatible with portable instruments, scanners, and mobile data terminals

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

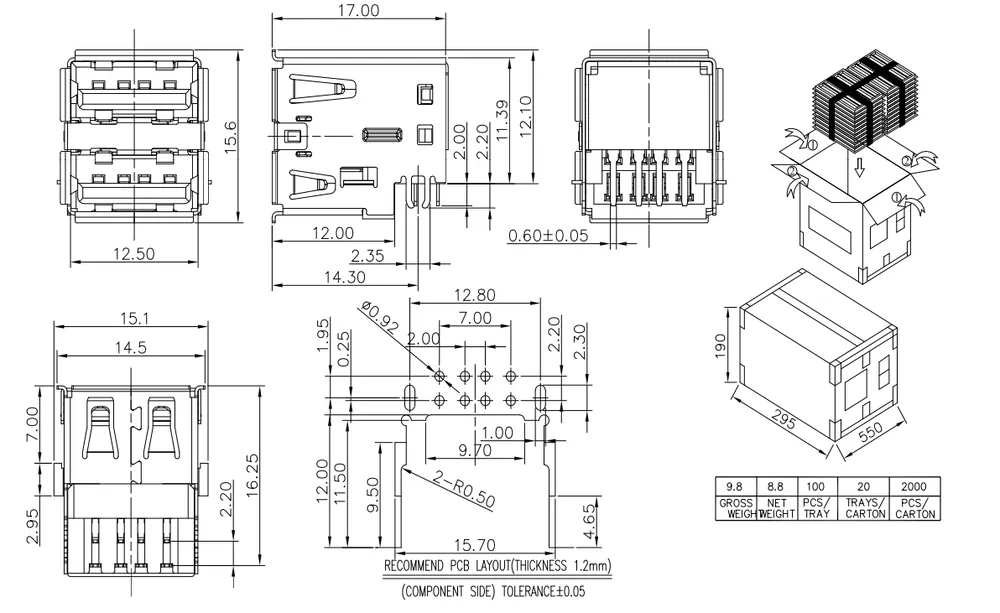

Product Drawing

Manufactured to USB-IF compliance standards, this 2.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 2.0 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
