USB 3.0 Single-Layer 180 Degree Locking Connector – C071026

Name: USB 3.0 Single-Layer 180 Degree Connector - C071026 | GSCONN
Brand: GSCONN

USB 3.05GbpsBoard-Mount

Tags:

#180 Degree #Locking #Single-Layer #USB 3.0 #USB Connector

Built for industrial and commercial USB applications, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board...

Request a Quote →

3.0 Standard interface5Gbps high-speed differential pairs

Single-layer PCB designSingle-row pin configuration

180° exit angleStraight-up cable routing

USB 3.0 SuperSpeed certifiedHigh-density PCB layout

Technical Specifications

USB Version	USB 3.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	5Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.0 Standard connector supporting standard 3.0 data protocols
Single-layer PCB design with 180° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Locking contact geometry optimized for specific mating and retention requirements
Compatible with 3D printers, CNC controllers, and maker platforms
Compatible with hand-soldering and reflow soldering processes for flexible production

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

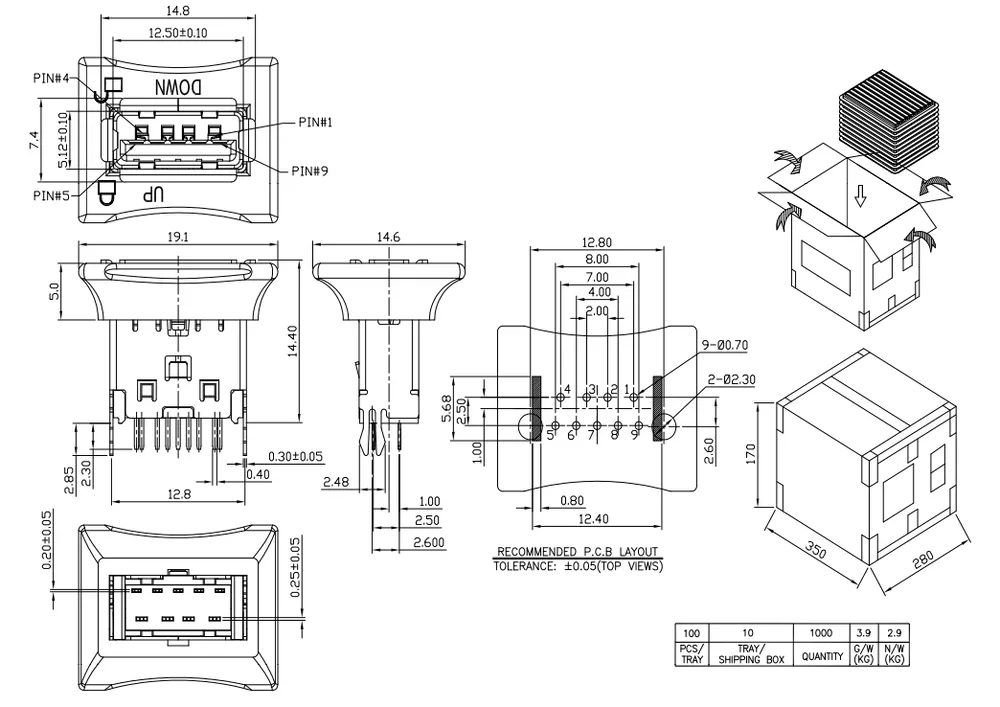

Product Drawing

Built for industrial and commercial USB applications, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
