USB 3.0 Single-Layer 180 Degree Low-Profile Connector – L000518

Name: USB 3.0 Single-Layer 180 Degree Connector - L000518 | GSCONN
Brand: GSCONN

USB 3.05GbpsBoard-Mount

Tags:

#180 Degree #Low-Profile #Single-Layer #USB 3.0 #USB Connector

Optimized for compact PCB footprint designs, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The...

Request a Quote →

3.0 Standard interface5Gbps SuperSpeed transfer

Single-layer PCB designSingle-row contact array

180° exit angleIn-line PCB exit

USB 3.0 SuperSpeed readyStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 3.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	BRASS, nickel plated
Data Speed	5Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.0 Standard connector supporting standard 3.0 data protocols
Single-layer PCB design with 180° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Suitable for automotive infotainment and telematics system integration
Compatible with industrial robot and AGV system interconnect

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

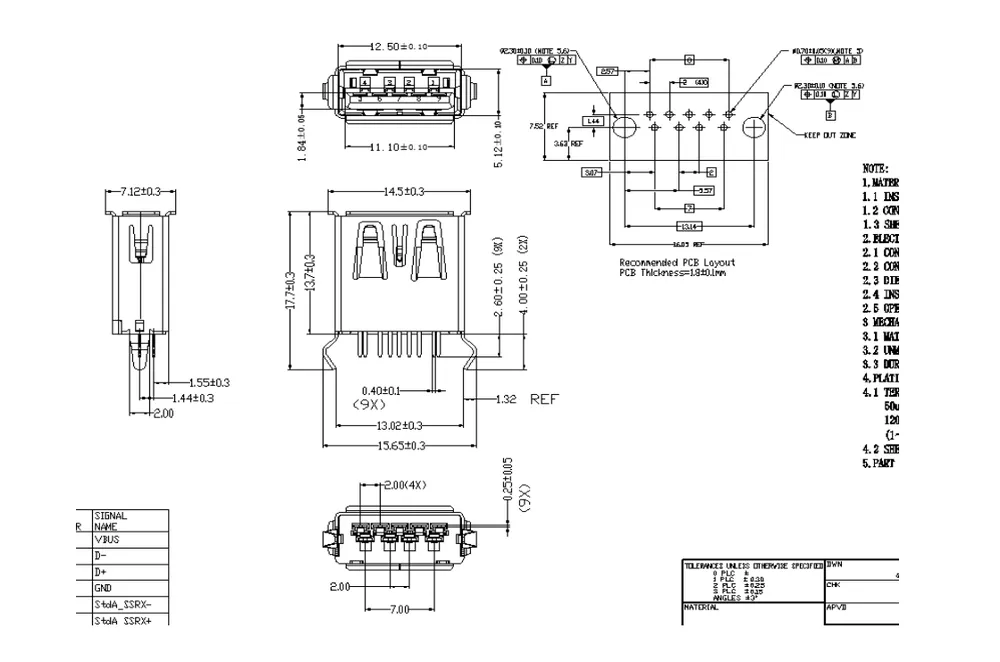

Product Drawing

Optimized for compact PCB footprint designs, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
