USB 3.0 + Type-C 24P 90 Degree Combo Connector – C071143

Name: USB 3.0 Single-Layer 90 Degree Type-C - C071143 | GSCONN
Brand: GSCONN

USB 3.05GbpsBoard-Mount

Tags:

#90 Degree #Combo #USB 3.0 #USB Connector #USB Type-C

Built for industrial and commercial USB applications, this 3.0 Type-C connector features standard board-mount construction with right-angle cable exit for horizontal board...

Request a Quote →

3.0 Type-C interface5Gbps high-speed differential pairs

Single-layer PCB designStandard pin configuration

90° exit angleHorizontal cable routing

USB 3.0 SuperSpeed certifiedCompact board footprint

Technical Specifications

USB Version	USB 3.0
Connector Type	USB Type-C
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	24-Pin
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	5Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.0 Type-C connector supporting standard 3.0 data protocols
Single-layer PCB design with 90° cable exit for flexible board integration
24P contact pin configuration for full USB signaling compatibility
Combo-port design consolidates multiple interfaces into a single PCB footprint
Compatible with high-speed data acquisition in factory automation
Compatible with high-volume SMT pick-and-place assembly equipment

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

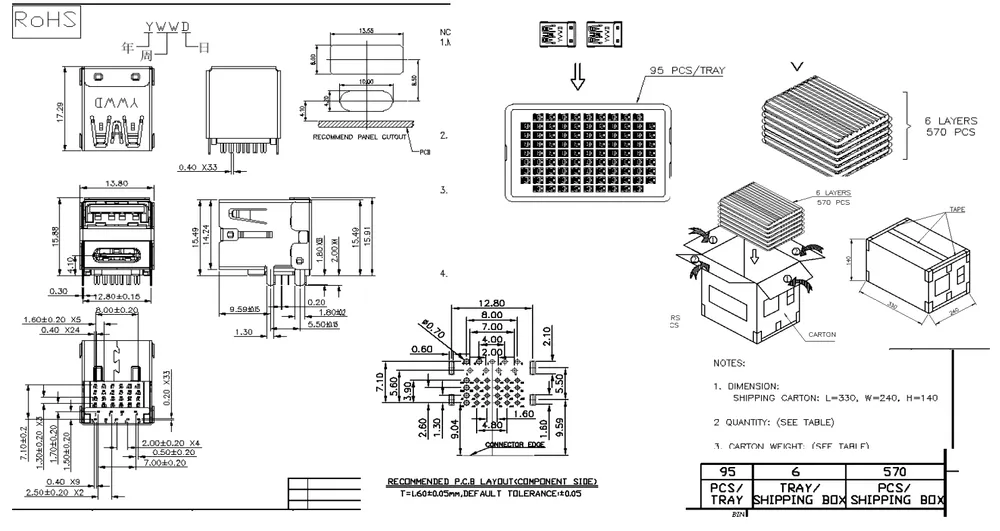

Product Drawing

Built for industrial and commercial USB applications, this 3.0 Type-C connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The 24P configuration supports full USB 3.0 signaling requirements for data and power delivery. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
