USB 3.1 Double-Layer Straight-Pin Connector – C071308

Name: USB 3.1 Double-Layer 90 Degree Connector - C071308 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#Double-Layer #Straight-Pin #USB 3.1 #USB Connector

Manufactured to USB-IF compliance standards, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact...

Request a Quote →

3.1 Standard interface10Gbps SuperSpeed+ path

Double-layer PCB designDouble-row contact array

90° exit angleStandard cable exit

USB 3.1 Gen 2 compliantStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	PBT/High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Straight-Pin contact geometry optimized for specific mating and retention requirements
Suitable for medical device and clinical equipment data interfaces
Gold-plated contact pins for low contact resistance and oxidation resistance

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

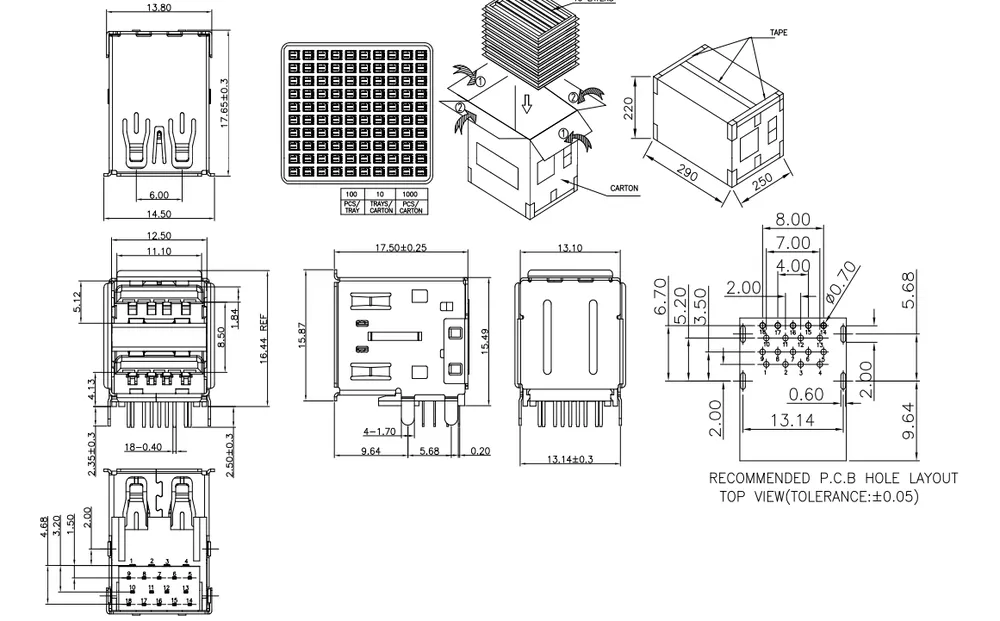

Product Drawing

Manufactured to USB-IF compliance standards, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
